18500 Ultra-Low Temperature Cylindrical Battery 3.7V 2500mAh Cryogenic Lithium Battery Supports -80-50 Degrees Battery Pack

Short Description:

Ultra-Low Temperature Battery is a ternary lithium battery specifically developed for drones, robotic dogs, vehicle jump starters, and individual soldier equipment operating in extreme cold environments. Its operating temperature range spans from -80°C to 60°C. achieving an impressive 80% discharge efficiency in cold conditions. Available in capacities ranging from 2.2Ah to 115Ah, these batteries pass needle penetration tests without ignition or explosion. Offered in cylindrical formats (18650 and 21700) and high-capacity pouch cells, they also support various custom shapes.

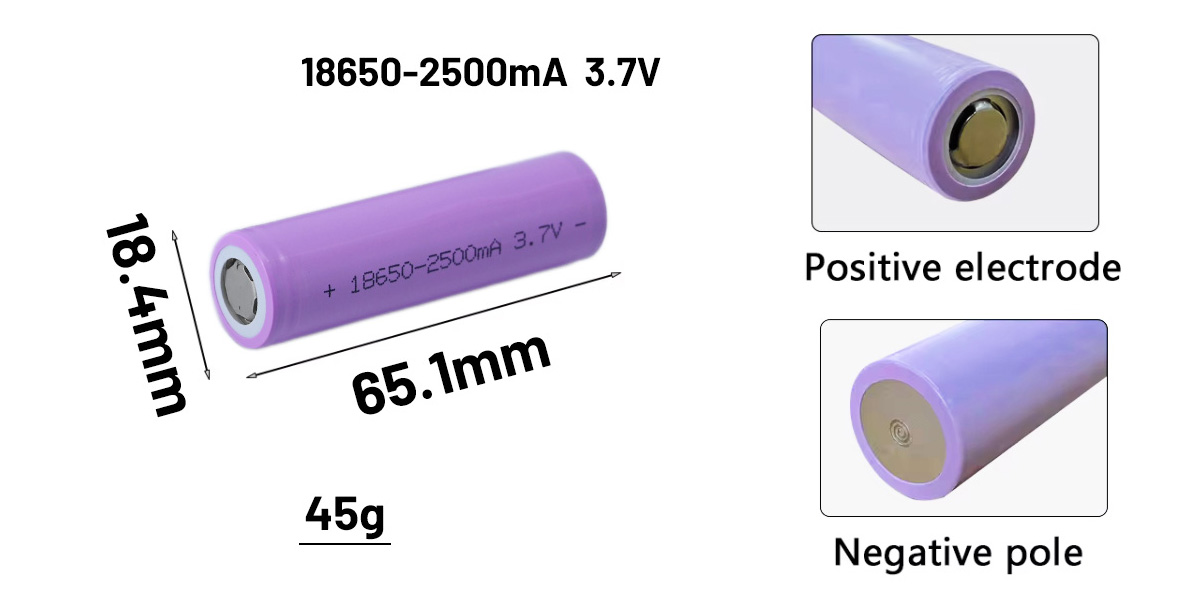

Model NO.: BH-ULTB-18650-2500mAh

Housing Material: Steel Shell

Nominal Capacity(0.2c): 2500 mAh

Rated Voltage: 3.7V

discharge: -80℃ ~ 55℃

Discharge efficiency at -80°C: ≥80%

Battery life L3 (Max.): 65.1±0.2 mm

Battery diameter (Max.): 18.4±0.5 mm

Battery weight(Max): ≤45g

Internal Resistance(Max, at 1000Hz.): ≤28mΩ(Charged state)

Send email to us

Product Detail

Product Tags

18650 Ultra Low Temperature Lithium Ion Battery

China BeiHai Power is a leader in energy solutions for ultra-low temperature environments. Addressing the power challenges faced by drones, robotic single-person vehicles, and heavy equipment in cold environments, we offer a full range of ultra-low temperature batteries, covering both cylindrical (18650/21700) and high-capacity pouch cells. Through nanoscale material modification, our products deliver exceptional power output at extreme temperatures ranging from -80°C to -40°C, with a discharge efficiency of up to 80%.

18500 Ultra-Low Cryogenic Lithium Battery

Product Core Specification

Our ultra-low temperature battery product line covers a wide range of options, from high energy density to ultra-high capacity:

Cylindrical ultra-low temperature battery
Model Specifications	Capacity	Operating Temperature Range	Application Features
18650 ultra-low temperature	3500mAh	-50°C ~ 55°C	Industry-leading energy density, suitable long-endurance UAVs.

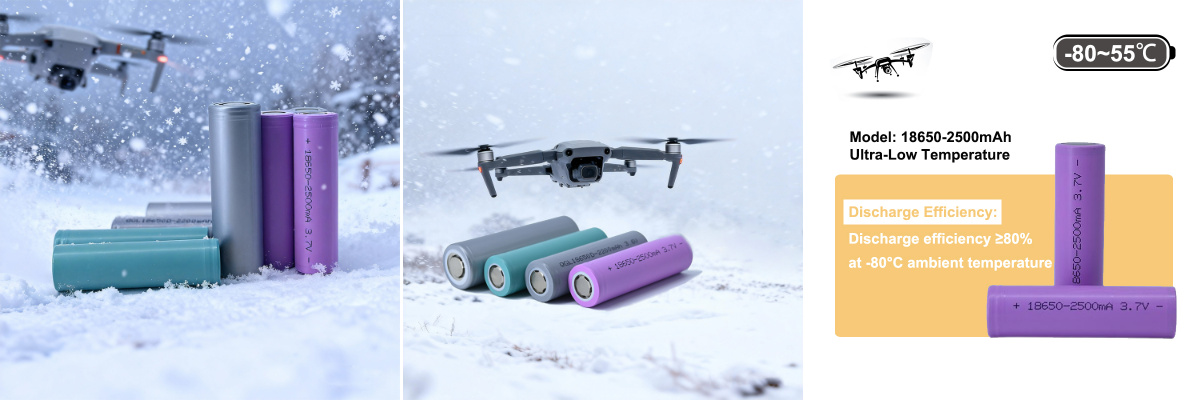

18650 ultra-low temperature	2500mAh	-80°C ~ 55°C	Designed specifically for extreme environments such as deep space and polar regions
18650 ultra-low temperature	2200mAh	-40°C ~ 55°C	Stable performance and high cost performance
2170018650 ultra-low temperature	5000mAh	-40°C ~ 55°C	Next-generation mainstream specifications, high-density power source


High-capacity ultra low temperature pouch cells
Model Specifications	Capacity	Operating Temperature Range	Application Features
13Ah pouch cells	13Ah	-40°C ~ 55°C	Ideal for small robotic dogs & portable ULT gear.
31Ah pouch cells	31Ah	-40°C ~ 55°C	Flexible grouping, suitable for industrial-grade inspection equipment
115Ah pouch cells	115Ah	-40°C ~ 55°C	Designed specifically for armored vehicle starting and large-scale energy storage

Functions and Feature

Breakthrough Temperature Limits: The extreme cold-weather model can withstand temperatures as low as -80°C, breaking the traditional “forbidden zone” of lithium batteries.

High-Rate Start-Up Performance: Large-capacity pouch batteries, such as the 115Ah model, are optimized for cold starts in armored vehicles and heavy machinery, offering strong instantaneous discharge capabilities.

Lightweight Design and High Energy Density: The 18650-3500mAh(2500mAh) range balances low-temperature performance with extremely high energy density, significantly improving the low-temperature endurance of drones.

Stable Physical Structure: The pouch battery boasts excellent heat dissipation and shock resistance, making it more suitable for high-dynamic mobile platforms such as robotic drones.

Application Scenarios

Specialized Equipment: Cold start power supplies for heavy equipment/armored vehicles, vehicle auxiliary power units (APUs), and support for missions in cold regions.

Intelligent Robots/Mechanical Dogs: Polar/border patrols, disaster relief, and automated exploration in frigid zones.

Industrial/Specialized Unmanned Aerial Vehicles (UAVs): Cross-altitude monitoring, winter defense patrols in northern regions, and high-altitude reconnaissance.

Single-Person Equipment Power Supplies: Tactical communication terminals, night vision devices and individual reconnaissance equipment, and cryogenic flashlights.

Individual Equipment Power Supply-1200px

Certifications

Our products comply with the most stringent international standards for global shipping and operation

UN38.3 (Standard for safe air/sea transport)

IEC 62133-2 (Safety for portable applications)

UL 1642 / UL 2054 (Battery safety standards)

CE / RoHS / REACH (Environmental and market compliance)

ISO 9001 (Quality management system certification)

Company Profile

FAQ

1.why choose our?

China BeiHai Power is located in Jiangxi of China. The company is a comprehensive service provider that integrates R & D, production,sales, construction, after-sales and operation with the main products of ultra low temperature battery for UAVs/Intelligent Robots/Mechanical Dogs/Single-Person Equipment Power Supplies and vehicle auxiliary cold start power supplies pay special attention to product quality, there is a strict quality inspection system to ensure that each product before shipment will be tested. Business scope sales to North, southern Europe , western Europe, northern Europe, Eastern Europe, Africa, South, East Asia, Southeast Asia.

2.What can you buy from us?

18650 21700 cylindrical ultra low temperature battery, 13Ah-115Ah Pouch Cells Li-ion polymer ultra low temperature battery for UAVs/Intelligent Robots/Mechanical Dogs/Single-Person Equipment Power Supplies and vehicle auxiliary cold start power supplies.

3.How can we guarantee quality?
We have CE and ISO certification, and our company has a strict quality check system which ensures that our products achieve consistent quality standards,each product will be tested before shipment,.
4.Can I customize my own logo?
Yes, OEM and ODM service are available,We also have professional design team for you if you need.
5.What is your terms of packing?
Generally, we pack our goods in brown cartons or wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
6.What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
