2025 Hot Sell 60KW-240KW Level 3 DC Fast Charging Station Public Electric Car Charging Pile CCS2 Tesla EV Car Charger with Four Charging Gun

Short Description:

• Three Guns 、Four Guns

• Support V2G/V2L/V2H

• Parallel Charging

• Conﬁgurable output power settings

• RFID Reader

• Optional Credit Card Reader

• OCPP 1.6J Compliant

• FRU Onboard Diagnostics

• Easy to maintain

Connectors: CCS1 || CCS2 || CHAdeMO || GBT Three Guns * Four Guns

Input Voltage: 400VAC / 480VAC (3P+N+PE)

Output Voltage: 200 - 1000VDC（The constant power : 300 - 1000VDC）

Output current: 0 to 800A

Rated power: 60-240kW

Communication protocol: OCPP 1.6J

Ingress Protection: IP54 || IK10

Length of charging cable: 5m

Dimensions (L x D x H): 900 * 900 *1975mm

Send email to us

Product Detail

Product Tags

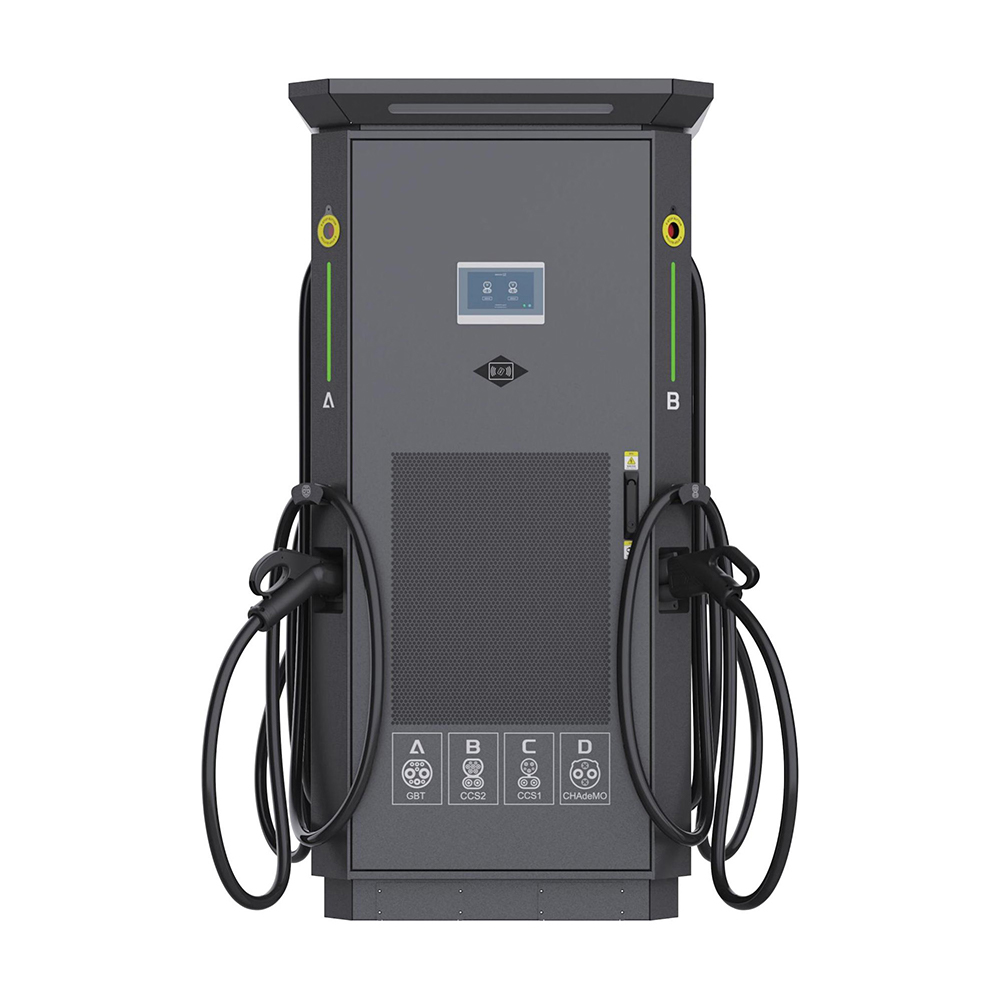

This 60KW-240KW DC fast charging station features a four-gun design, boasting more modules and a wider range of applicable scenarios, capable of handling a greater variety of usage situations. It is highly suitable for areas with intensive charging needs. Equipped with an advanced control system and communication modules, it supports functions such as intelligent scheduling, remote monitoring, and fault diagnosis. It also supports connectivity with major mainstream electric car charging station management platforms. Through its connection to the cloud platform, operators can monitor the real-time operating status of the char- ging station, enabling remote maintenance and upgrades.

60-240kW Series DC EV Charger

Category	specifications	Data parameters
Appearance structure	Dimensions (L x D x H)	900 * 900 *1975mm
	Weight	480kg
	Length of charging cable	5m
	Connectors	CCS1 \|\| CCS2 \|\| CHAdeMO \|\| GBT Three Guns * Four Guns
Electrical indicators	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC
	Output current	0 to 800A
	rated power	60-240kW
	Efficiency	≥94% at nominal output power
	Power factor	>0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	7’’ LCD with touch screen
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G Modem (Optional)
	Power Electronics Cooling	Air Cooled
Work environment	Operating temperature	-30 °C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54 \|\| IK10
Safety design	Safety standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
