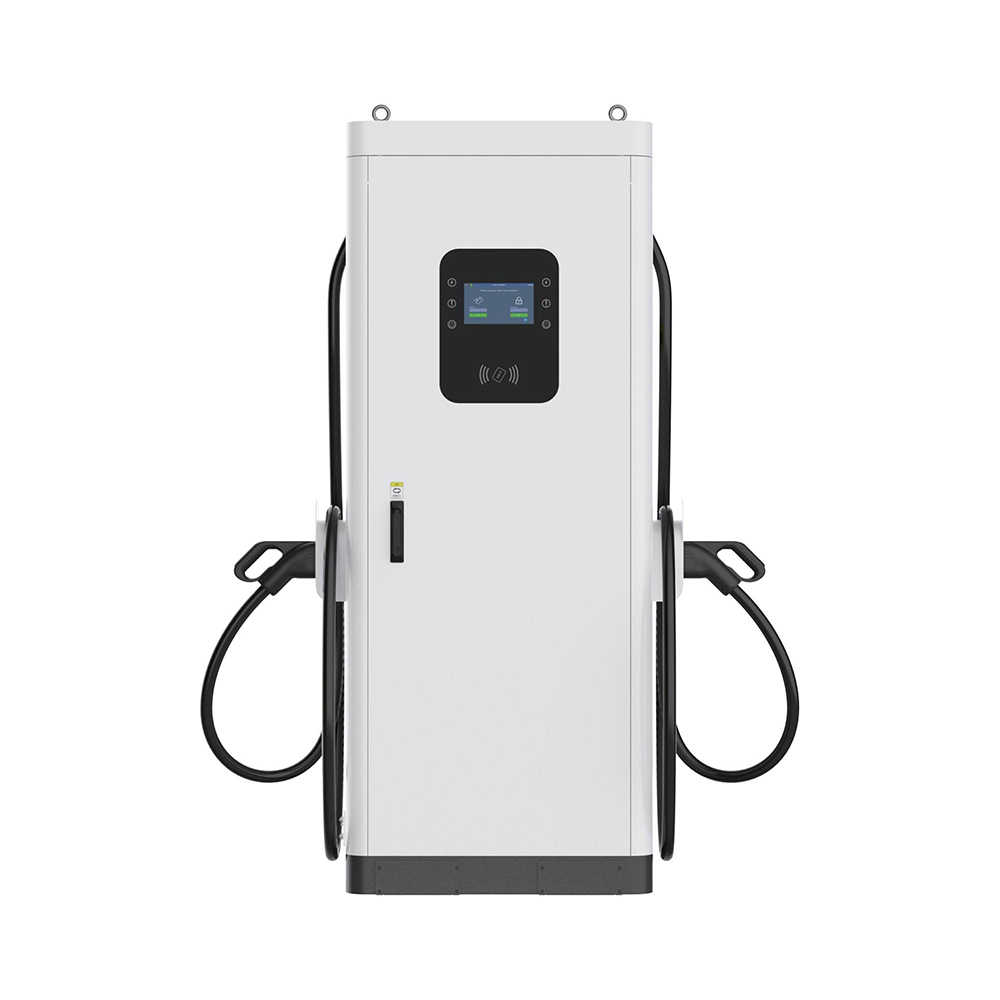

60KW-240KW Dual Connector CCS2 GB/T Highway Charging Stations DC Electric Car Charger Level 3 Commercial EV Charging Station for Public Use IP54

Short Description:

• Support V2G

• Parallel Charging

• Configurable output power settings

• RFID Reader

• Optional Credit Card Reader

• OCPP 1.6J Compliant

• FRU Onboard Diagnostics

• CE Certified

Connectors: CCS1 || CCS2 || CHAdeMO || GBT || NACS

Input Voltage: 400VAC / 480VAC (3P+N+PE)

Output Voltage: 200 - 1000VDC（The constant power : 300 - 1000VDC）

Output current (Air Cooled): CCS1– 200A || CCS2 – 200A || CHAdeMO – 150A || GBT- 250A|| NACS – 200A

Output current (liquid cooled): CCS2 – 500A || GBT- 800A || GBT- 600A || GBT- 400A

rated power: 60-240kW

Ingress Protection: IP54 || IK10

Length of charging cable: 5m

Dimensions (L x D x H): 750mm x 750mm x 1880mm

Send email to us

Product Detail

Product Tags

This product boasts a self-developed, brand-new appearance and supports customized design, maximizing customer satisfaction in terms of visual appeal. It can be adjusted to power levels ranging from 60 kW to 240 kW according to speciﬁc needs. This product has obtained CE certiﬁcation and is suitable for operation and use in urban dedicated charging stations, urban public charging stations, intercity highway charging stations, and other related locations. Equipped with advanced control systems and communica- tion modules, it supports functions such as intelligent scheduling, remote monitoring, and fault diagnosis. It can connect with major mainstream ev charging pile management platforms, and through its connection to the cloud platform, operators can monitor the real-time operating status of the level 3 charging piles, perform remote maintenance and upgrades, thereby enhancing the utilization rate and reliability of the charging piles.

60-240KW Series DC EV charger

Category	specifications	Data parameters
Appearance structure	Dimensions (L x D x H)	750mm x 750mm x 1880mm
	Weight	About 310kg (including wooden crate)
	Length of charging cable	5m
	Connectors	CCS1 \|\| CCS2 \|\| CHAdeMO \|\| GBT \|\| NACS
Electrical indicators	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC（The constant power : 300 - 1000VDC）
	Output current (Air Cooled)	CCS1– 200A \|\| CCS2 – 200A \|\| CHAdeMO – 150A \|\| GBT- 250A\|\| NACS – 200A
	Output current (liquid cooled)	CCS2 – 500A \|\| GBT- 800A \|\| GBT- 600A \|\| GBT- 400A
	rated power	60-240kW
	Efficiency	≥94% at nominal output power
	Power factor	0.98
	Communication protocol	OCPP1.6J
Functional design	Display	7’’ LCD with touch screen
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G \|\| Wifi
	Power Electronics Cooling	Air Cooled \|\| liquid cooled
Work environment	Operating temperature	-30 °C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54 \|\| IK10
Safety design	Safety standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
