Commercial 44kw Floor Mounted Charging Station Type2 AC Electric Car Charger 380V 32A AC EV Charger with Dual Charging Gun

Short Description:

• Swipe card activation

• RFID Reader

• Both column-mounted and wall-mounted options are available

• CE Certiﬁed

Products name: 44KW AC EV Charger

Connectors: Type1 || Type2 || GBT

Input Voltage: 380V±15%

Output Voltage: 380V

Output current: 32A*2

Rated power: 44KW

Power Electronics Cooling: Natural Cooled

Communication protocol: OCPP 1.6J

Ingress Protection: IP65

Dimensions (L x D x H): 270*110*1365mm

Send email to us

Product Detail

Product Tags

This powerful commercial-grade floor-mounted AC EV charging station is engineered for high-demand locations such as public parking lots, commercial fleet depots, hotels, and retail centers. Delivering a robust 44kW output, it efficiently charges two electric vehicles simultaneously, significantly reducing waiting times. The station features dual Type 2 charging connectors, making it compatible with the majority of European and international EV models. Operating on a 380V three-phase power supply at 32A per phase, it ensures fast and reliable charging performance. Its durable, floor-mounted design is built to withstand rigorous use in commercial environments, offering a reliable, high-speed charging solution for AC electric vehicles.

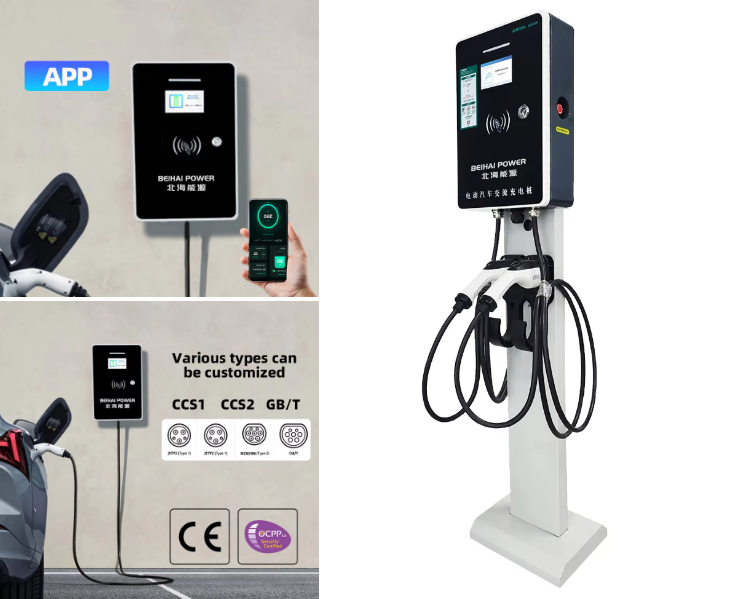

44KW AC EV Charger Floor-mounted Electric Car Charger

44kw AC electric car charging pile parameter

Category	specifications	Data parameters
Appearance Structure	Dimensions (L x D x H)	2701101365 (Column)
	Weight	5.4kg
	Length of charging cable	3.5m
Electrical Indicators	Connectors	Type1 \|\| Type2 \|\| GBT
	Input Voltage	380 VAC
	Input frequency	50/60Hz
	Output Voltage	380 VDC
	Output current	32A*2
	rated power	44KW
	Efficiency	≥94% at nominal output power
	Power factor	0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	7’’ LCD with touch screen
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G \|\| Wifi
Work Environment	Power Electronics Cooling	Natural Cooled
	Operating temperature	-30 °C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP65
Safety Design	Safety standard	GB/T,Type2,Type1,CHAdeMo,NACS
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
