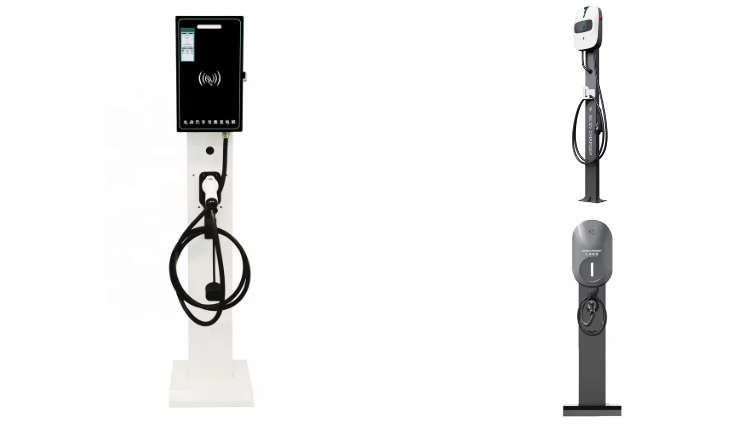

Level 2 AC EV Charger Type 2 New Energy Electric Vehicle Floor-Mounted Charging Station 380V 32A AC EV Charging Pile 22KW AC Electric Car Charger

Short Description:

• Swipe card activation

• RFID Reader

• Both column-mounted and wall-mounted options are available

• CE Certiﬁed

Connectors: Type1 || Type2 || GBT

Input Voltage: 380V±15%

Output Voltage: 380V

Output current: 32A

Rated power: 22KW

Power Electronics Cooling: Natural Cooled

Communication protocol: OCPP 1.6J

Ingress Protection: IP65

Dimensions (L x D x H): 270*110*1365mm

Send email to us

Product Detail

Product Tags

The high-performance Level 2 AC EV Charger, a robust floor-mounted charging station designed for New Energy Electric Vehicles. Operating at 380V and 32A, this powerful unit delivers a substantial 22kW of AC charging capability, significantly reducing charging times. Equipped with the widely adopted Type 2 connector, this AC EV Charging Pile offers reliable, efficient, and fast AC power replenishment. Crucially, the Type 2 standard (CCS2) makes it perfectly suited for both the European Union and the rapidly expanding EV markets across Southeast Asian countries, where this connector is increasingly becoming the regional norm. This makes it an ideal permanent charging solution for commercial, fleet, or residential applications requiring rapid electric vehicle charging in these key global regions.

22kw AC charging pile parameter

Category	specifications	Data parameters
Appearance Structure	Dimensions (L x D x H)	2701101365 (Column)
	Weight	5.4kg
	Length of charging cable	3.5m
Electrical Indicators	Connectors	Type1 \|\| Type2 \|\| GBT
	Input Voltage	380 VAC
	Input frequency	50/60Hz
	Output Voltage	380 VDC
	Output current	32A
	rated power	22KW
	Efficiency	≥94% at nominal output power
	Power factor	0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	7’’ LCD with touch screen
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G \|\| Wifi
Work Environment	Power Electronics Cooling	Natural Cooled
	Operating temperature	-30 °C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP65
Safety Design	Safety standard	GB/T,Type2,Type1,CHAdeMo,NACS
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power

22kw AC electric car charger features

High-Speed Three-Phase AC Charging (22kW Output): Delivers a powerful 380V, 32A three-phase output, enabling a rapid Level 2 charge that is significantly faster than standard home charging.
Universal European/Asian Compatibility (Type 2 Standard): Features the internationally standardized Type 2 (IEC 62196-2) connector, ensuring broad compatibility with the majority of electric vehicles, especially in Europe and a growing number of Southeast Asian markets.
Robust Floor-Mounted / Pedestal Design: Constructed as a durable, free-standing charging pile (charging station), making it suitable for secure and permanent installation in public, commercial (fleet/workplace), or dedicated residential parking areas.
Optimized for Commercial and Public Use (380V/Three-Phase): The high voltage and three-phase power configuration is ideal for maximizing efficiency and throughput in commercial environments, minimizing vehicle downtime.
Weatherproof and Safe for Outdoor Installation: Typically features a high ingress protection (IP) rating (e.g., IP54 or higher) and integrated electrical protections (such as overcurrent, overvoltage, and short-circuit protection) suitable for an outdoor, all-weather installation.
