Customized Gbt CCS2 CCS1 Single Gun DC Electric Car Battery Charger Smart Energy Vehicle Mobile Energy Storage Charger for Roadside Assistance EV Car

Short Description:

• Support V2G/V2L/V2H

• RFID Reader

• OCPP 1.6J Compliant

• Battery capacity: 33 kWh

• Vehicle mounted mobility

Connectors: CCS1 || CCS2 || CHAdeMO || GBT

Rated Power: 30kW

Output Voltage: 200 - 1000VDC

Output current: 0 to 100A

Power Electronics Cooling: Air Cooled

Ingress Protection: IP54 || IK10

Communication protocol: OCPP 1.6J

Length of charging cable: 5m

Dimensions (L x D x H): 1760mm x1030mm x 1023mm

Send email to us

Product Detail

Product Tags

Mobile energy storage charger is a product that serves the new energy vehicle industry. Widely used in application scenarios such as road rescue for new energy vehicles, emergency power replenishment, and on-site charging services. It is an extension and supplement to the operation services of new energy vehicle charging stations, providing more convenient and efﬁcient charging services for new energy vehicle owners.

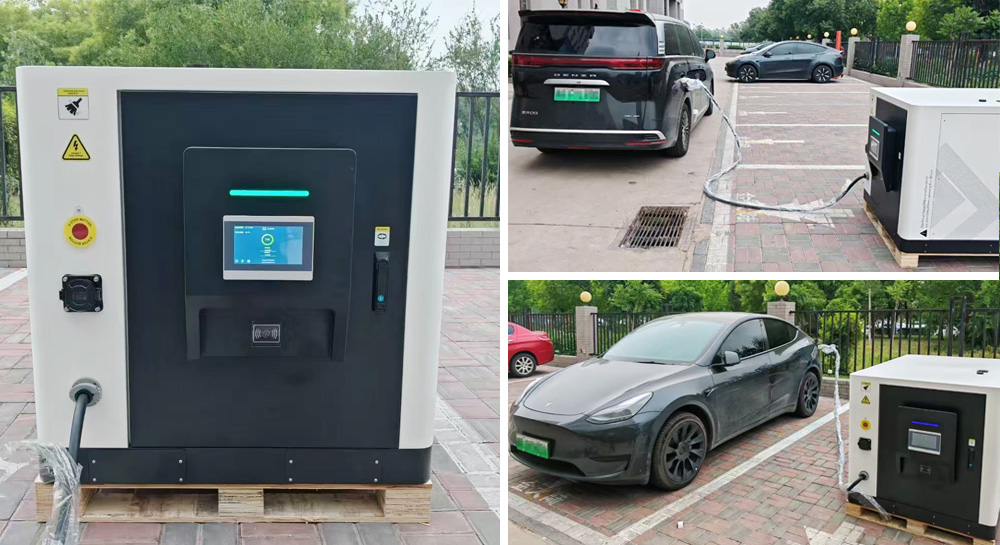

30kW mobile energy storage charger

Appearance structure	Dimensions (L x D x H)	1760mm x1030mm x 1023mm
	Weight	300kg
	Length of charging cable	5m
Electrical indicators	Connectors	CCS1 \|\| CCS2 \|\| CHAdeMO \|\| GBT
	Output Voltage	200 - 1000VDC
	Output current	0 to 1200A
	Insulation (input - output)	>2.5kV
	Efficiency	≥94% at nominal output power
	Power factor	>0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	Customize according to requirements
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G Modem (Optional)
	Power Electronics Cooling	Air Cooled
Work environment	Operating temperature	-30 °C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54 \|\| IK10
Safety design	Safety standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
