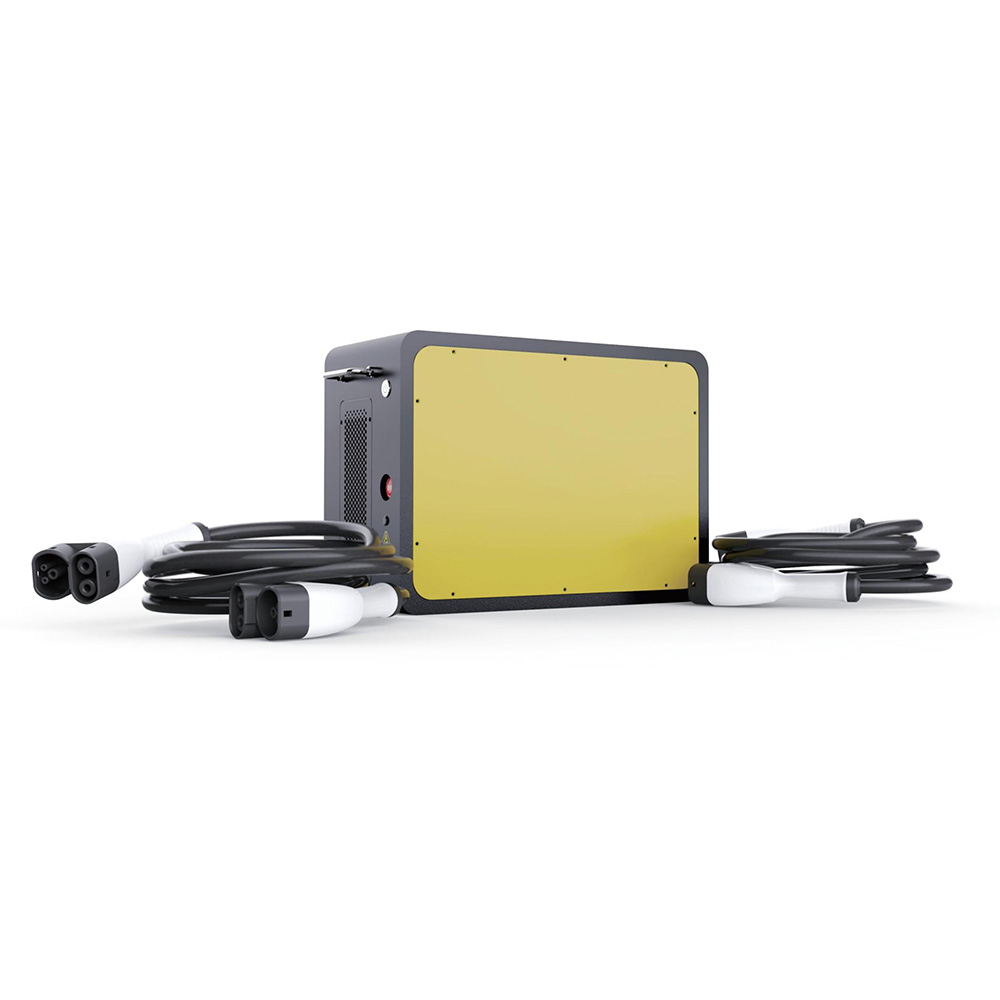

Factory Wholesale Price 20kw V2V External Power Supply Charger for Outdoor Self-Driving Electric Vehicles to Charge Electrical Appliances

Short Description:

• Small size, easy to carry

• Rated power: 20kW

• The length of the charging cable is optional

• Connector : CCS1 / CCS2 / CHAdeMO /GBT / Tesla

Connectors: CCS1 || CCS2 || GBT ||CHAdeMO || NACS (Optional)

Rated Power: 20kW

Output voltage/current range: 50Vdc-750Vdc, 0.2-50A

Output current: 0 to 100A

Ingress Protection: IP43 || IK10

Communication protocol: OCPP 1.6J

Length of charging cable: 5m

Length of charging cable: 2.5m/3.5m/5m (Optional)

Send email to us

Product Detail

Product Tags

V2V can enable new energy vehicles to charge new energy vehicles, with DC output capability, and can quickly provide energy replenishment and rescue for new energy vehicles that are experiencing power outages and breakdowns

30kW mobile energy storage charger

Appearance structure	Dimensions (L x D x H)	Customization
	Weight	40kg
	Length of charging cable	2.5m/3.5m/5m (Optional)
Electrical indicators	Connectors	CCS1 \|\| CCS2 \|\| GBT \|\|CHAdeMO \|\| NACS (Optional)
	Output voltage/current range	50Vdc-750Vdc, 0.2-50A
	Insulation (input - output)	>2.5kV
	Efficiency	≥94% at nominal output power
	Power factor	>0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	Customize according to requirements
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G Modem (Optional)
	Power Electronics Cooling	Air Cooled
Work environment	Operating temperature	-40℃ ~+75℃
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP43 \|\| IK10
Safety design	Safety standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
