Factory Wholesale Price DC EV Charger CCS1 CCS2 Gbt Single Gun Electric Car Charging Station Liquid Cooled Charging Pile with CE FCC UL
The configuration of this liquid cooled charging terminal(single gun) is flexible and can be applied to various scenarios. Optional touch screen. Suitable for supporting automobile enterprises, commercial real estate, government enterprises, gas stations, DC commerical fast charging stations, etc. It can charge various types and capacities of electric vehicles, including passenger cars, buses, sanitation vehicles, heavy-duty trucks, etc.

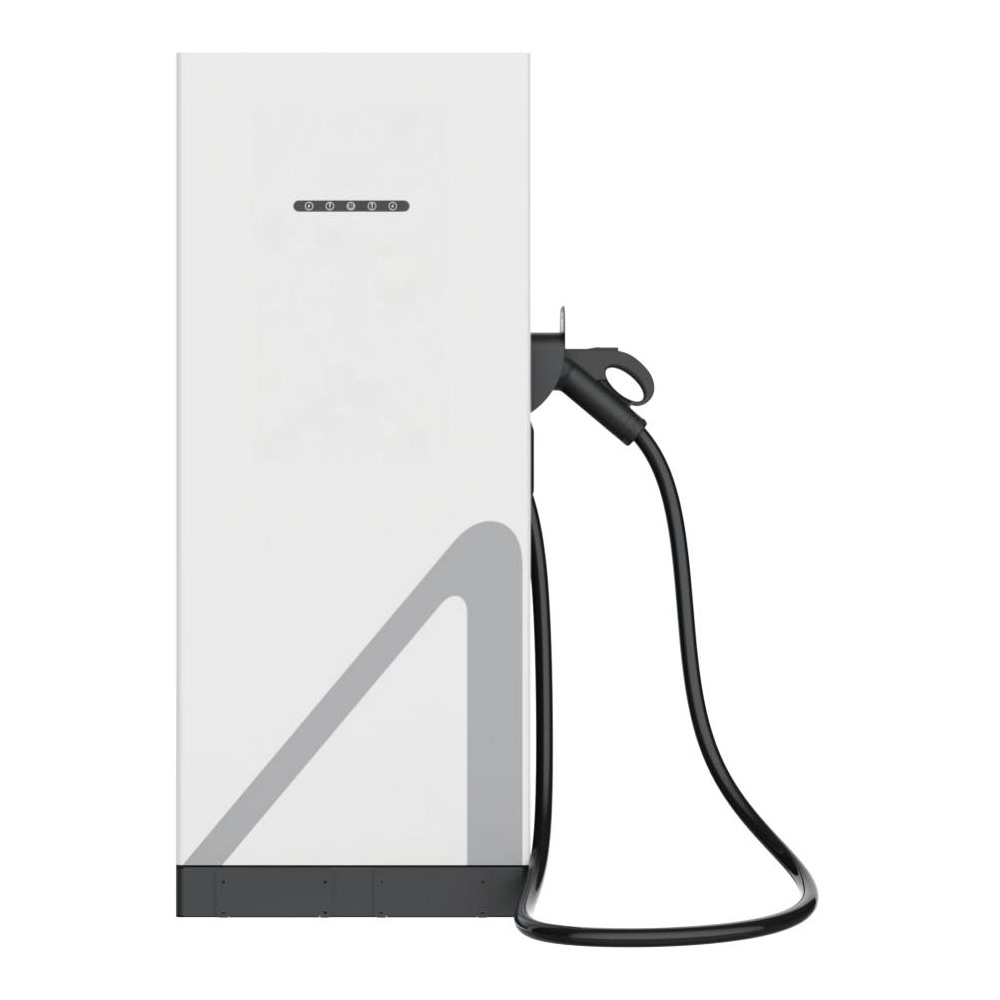

Liquid cooled single gun charging terminal
| Appearance structure | Dimensions (L x D x H) | 700mm x 400mm x 1700mm |
| Weight | 122kg | |
| Length of charging cable | 5m | |
| Electrical indicator | Connectors | CCS2 || GBT * Single |
| Output Voltage | 200 - 1000VDC | |
| Output current | 0 to 1200A | |
| Insulation (input - output) | >2.5kV | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | >0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional design | Display | Customize according to requirements |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G Modem (Optional) | |
| Power Electronics Cooling | Liquid Cooled | |
| Work environment | Operating temperature | -30 °C to 55°C |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety design
|
Safety standard | GB/T 18487 2023, GB/T 20234 2023, GB/T 27930 |
| Safety protection | Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
Contact us to learn more about BeiHai Power Liquid Cooled single gun charging pile
