Factory Wholesale Price Mobile EV Charging Pile 40KW DC Electric Car Charger CCS1 CCS2 GB/T Double Charging Gun Electric Vehicle Charging Station

Short Description:

• Single and Dual Connectors

• Support V2G/V2L/V2H

• Parallel Charging

• Conﬁgurable output power settings

• RFID Reader

• Optional Credit Card Reader

• OCPP 1.6J Compliant

• FRU Onboard Diagnostics

• Easy to Service

• CE Certiﬁed

Connectors: CCS1 || CCS2 || CHAdeMO || GBT

Input Voltage: 400VAC / 480VAC (3P+N+PE)

Output Voltage: 200 - 1000VDC

Output current: CCS1 – 120A || CCS2 – 120A || CHAdeMO – 120A || GBT- 120A

Rated power: 40KW

Power Electronics Cooling: Air Cooled

Communication protocol: OCPP 1.6J

Ingress Protection: IP30

Dimensions (L x D x H): 660mm x 770mm x 1000mm

Send email to us

Product Detail

Product Tags

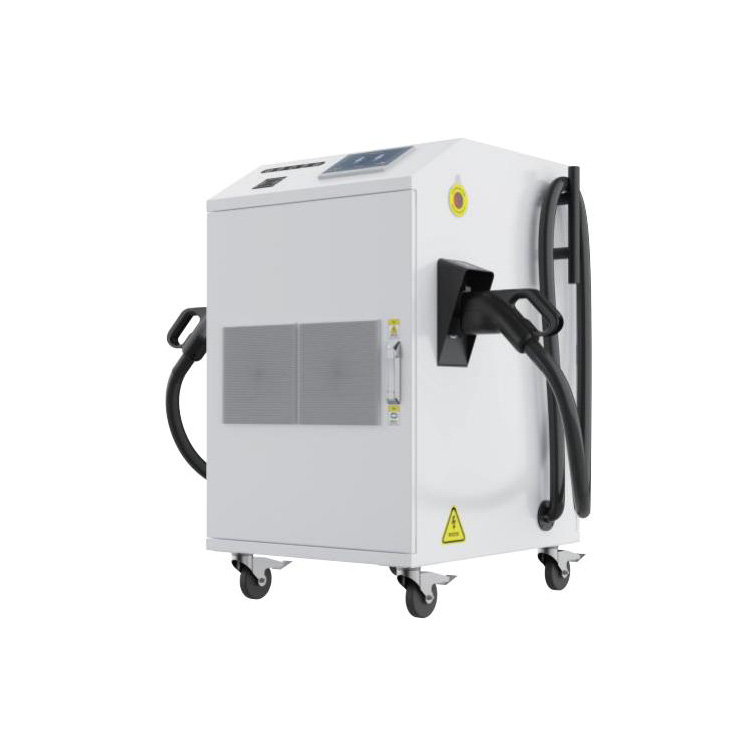

This charger pile adopts mobile design, with 4 universal wheels, more ﬂexible in application. In addition to the general scenario, it is also very suitable for the tempo- rary addition of charging devices in peak hours, emergency charging during the maintenance of conventional charging piles and other scenarios.

This charger pile adopts mobile design, with 4 universal wheels, more ﬂexible in application.

40 kW DC EV Charger

Category	specifications	Data parameters
Appearance structure	Dimensions (L x D x H)	660mm x 770mm x 1000mm
	Weight	120kg
	Length of charging cable	3.5m
	Connectors	CCS1 \|\| CCS2 \|\| CHAdeMO \|\| GBT
Electrical indicators	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC
	Output current	CCS1 – 120A \|\| CCS2 – 120A \|\| CHAdeMO – 120A \|\| GBT- 120A
	rated power	40kW
	Efficiency	≥94% at nominal output power
	Power factor	>0.98
	Communication protocol	OCPP 1.6J
functional design	Display	No
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G Modem (Optional)
	Power Electronics Cooling	Air Cooled
work environment	Operating temperature	-30°C to 75°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP30
safety design	Safety standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
safety design	Safety protection	Overvoltage protection, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
