High Power Liquid Cooled EV Charging Station CCS2 GB/T Dual Gun Electric Car Charger Commercial DC EV Charger with Ocpp and CE/TUV

Short Description:

• Liquid-cooled dual-gun charging

• Optional: with or without a screen

• Conﬁgurable output power settings

• RFID Reader

• Optional Credit Card Reader

• OCPP 1.6J Compliant

• FRU Onboard Diagnostics

Connectors: CCS2 || GBT * dual

Output Voltage: 200 - 1000VDC

Output current: 0 to 1200A

Power Electronics Cooling: Liquid Cooled

Ingress Protection: IP54 || IK10

Communication protocol: OCPP 1.6J

Length of charging cable: 5m

Dimensions (L x D x H): 700mm x 400mm x 1700mm

Send email to us

Product Detail

Product Tags

The conﬁguration of this liquid cooled dual gun charging terminal is ﬂexible and can be applied to various scenarios. Optional touch screen. Suitable for supporting automobile enterprises, commercial real estate, government enterprises, gas stations, public fast charging stations, etc. It can charge various types and capacities of electric vehicles, including passenger cars, buses, sanitation vehicles, heavy-duty trucks, etc.

The conﬁguration of this liquid cooled dual gun charging terminal is ﬂexible and can be applied to various scenarios. Optional touch screen. Suitable for supporting automobile enterprises, commercial real estate, government enterprises, gas stations, public fast charging stations, etc.

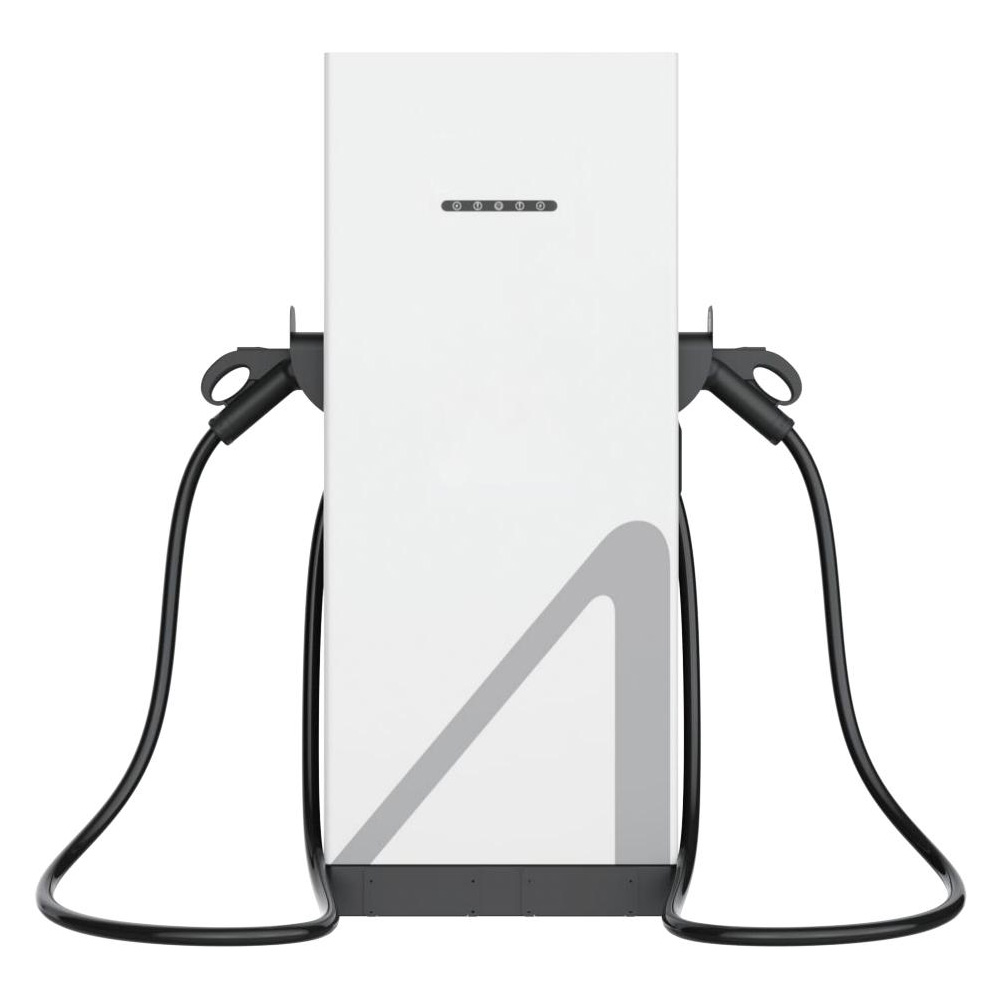

Liquid cooled dual gun charging terminal

Appearance structure	Dimensions (L x D x H)	700mm x 400mm x 1700mm
	Weight	130kg
	Length of charging cable	5m
Electrical indicators	Connectors	CCS2 \|\| GBT * dual
	Output Voltage	200 - 1000VDC
	Output current	0 to 1200A
	Insulation (input - output)	>2.5kV
	Efficiency	≥94% at nominal output power
	Power factor	>0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	Customize according to requirements
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G Modem (Optional)
	Power Electronics Cooling	Liquid Cooled
Work environment	Operating temperature	-30 °C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54 \|\| IK10
Safety design	Safety standard	GB/T 18487 2023, GB/T 20234 2023, GB/T 27930
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
