High Quality 20KW 30kw 40KW Series DC Commercial Floor-Standing Charging Pile Single Guns EV Quick Charging Station

Short Description:

• Support V2G/V2L/V2H

• Parallel Charging

• Configurable output power settings

• RFID Reader

• Optional Credit Card Reader

• OCPP 1.6J Compliant

• FRU Onboard Diagnostics

• Easy to maintain

Connectors: CCS1 || CCS2 || CHAdeMO || GBT Single gun

Input Voltage: 400VAC / 480VAC (3P+N+PE)

Output Voltage: 200 - 1000VDC

Output current: CCS1– 100A || CCS2 – 100A || CHAdeMO – 100A || GBT- 100A

Rated power: 20,30,40kW Series DC EV Charger

Power Electronics Cooling: Air Cooled

Communication protocol: OCPP 1.6J

Ingress Protection: IP54 || IK10

Dimensions (L x D x H): Pillar630mm x 260mm x 1600mm Wall 630mm x 260mm x 750mm

Send email to us

Product Detail

Product Tags

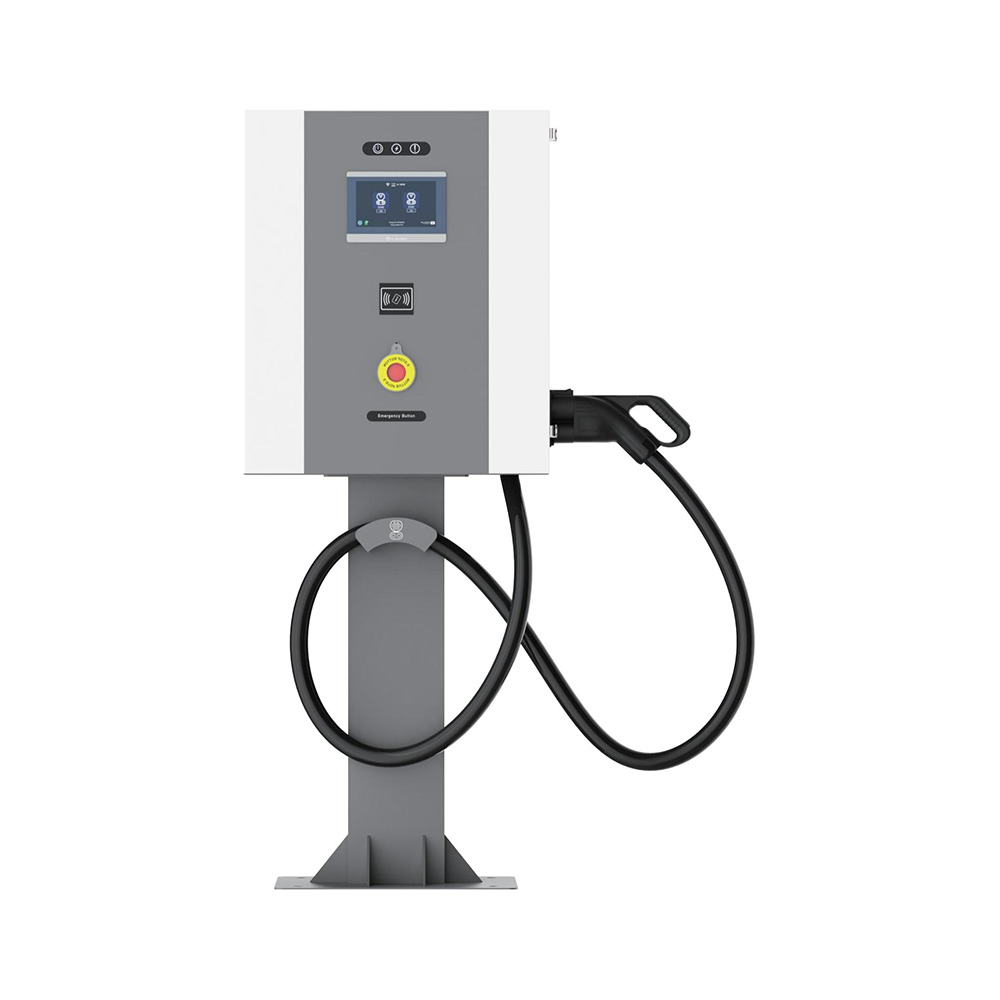

This charger adopts a simple column design and occupies a very small area, which is very suitable for low-power charging scenarios with site restrictions and power distribution restrictions.

20,30,40kW Series DC EV Charger

Category	specifications	Data parameters
Appearance Structure	Dimensions (L x D x H)	Pillar630mm x 260mm x 1600mm Wall 630mm x 260mm x 750mm
	Weight	100kg
	Length of charging cable	5m
Electrical Indicators	Connectors	CCS1 \|\| CCS2 \|\| CHAdeMO \|\| GBT Single gun
	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC
	Output current	CCS1– 100A \|\| CCS2 – 100A \|\| CHAdeMO – 100A \|\| GBT- 100A
	rated power	20,30,40kW Series DC EV Charger
	Efficiency	≥94% at nominal output power
	Power factor	0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	7’’ LCD with touch screen
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G \|\| Wifi
Work Environment	Power Electronics Cooling	Air Cooled
	Operating temperature	-30 °C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54 \|\| IK10
Safety Design	Safety standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
