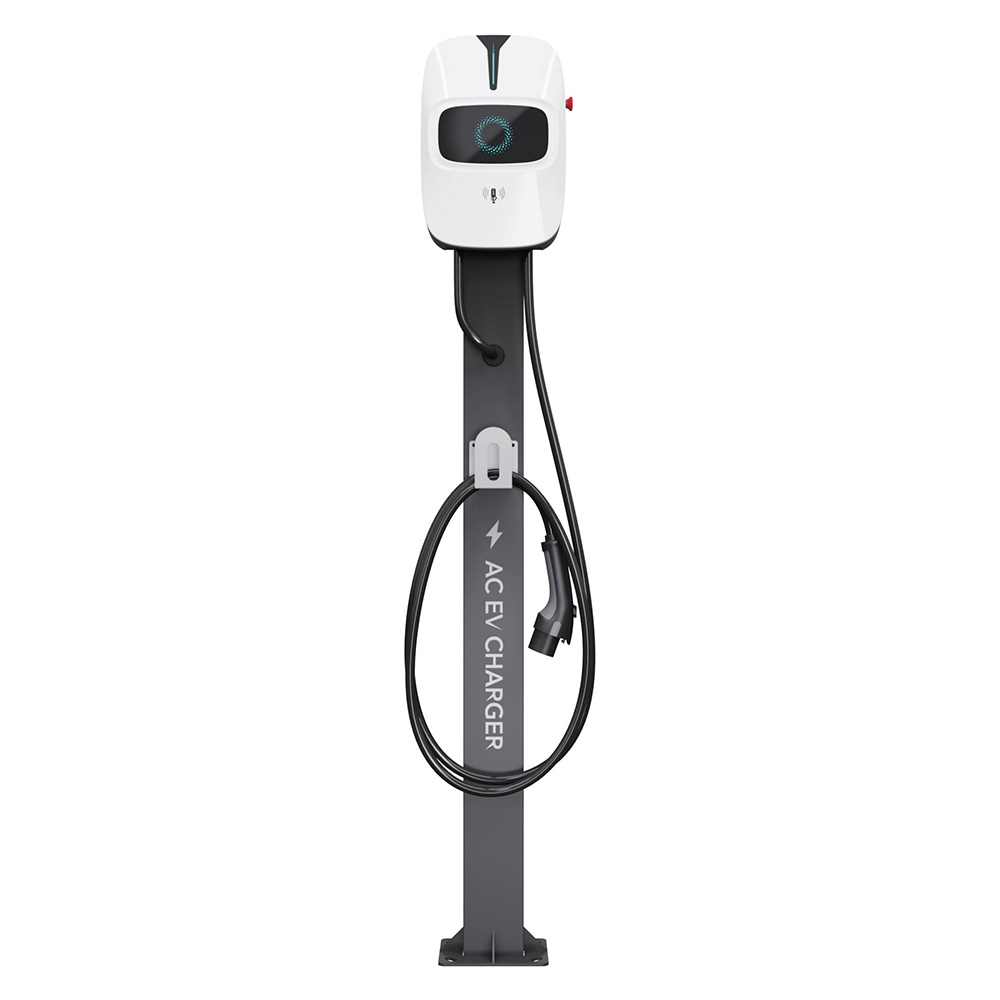

New Energy Electric Vehicle Floor-Mounted Charging Station 380V 16A AC EV Charging Station 7KW 11kw 22KW AC Electric Car Charger
The 7kw AC charging pile is a low-power electric vehicle charging device, primarily suitable for large, medium, and small electric vehicle charging stations in various public places with electric parking lots. It offers two installation methods: wall-mounted and column-mounted.
20,30,40kW Series DC EV Charger
| Category | specifications | Data parameters |
|
Appearance Structure |
Dimensions (L x D x H) | Pillar 235mm x 93mm x 350mm Wall 235mm x 93mm x 1510mm |
| Weight | 5.4kg | |
| Length of charging cable | 3.5m | |
|
Electrical Indicators |
Connectors | Type1 || Type2 || GBT |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) | |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC | |
| Output current | 0 to 400A | |
| rated power | 7KW, 14KW, 11KW, 22KW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
|
Functional design |
Display | 7’’ LCD with touch screen |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G || Wifi | |
|
Work Environment |
Power Electronics Cooling | Air Cooled |
| Operating temperature | -30 °C to 55°C | |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety Design | Safety standard | GB/T,Type2,Type1,CHAdeMo,NACS |
| Safety protection | Overvoltage protection, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
