New-Style Technology Commercial Public 240kw DC EV Charging Station Liquid Cooled Electric Car Charger Multi Terminal Guns Floor-Mounted Charging Station for E-Taxi

Short Description:

• Support V2G/V2L/V2H

• Parallel Charging

• Conﬁgurable output power settings

• RFID Reader

• Optional Credit Card Reader

• OCPP 1.6J Compliant

• FRU Onboard Diagnostics

• Easy to maintain

Connectors: CCS1 || CCS2 || CHAdeMO || GBT || NACS

Input Voltage: 400VAC / 480VAC (3P+N+PE)

Output Voltage: 200 - 1000VDC（The constant power : 300 - 1000VDC）

Output current (Air Cooled): CCS1– 200A || CCS2 – 200A || CHAdeMO – 150A || GBT- 250A|| NACS – 200A

Output current (liquid cooled): CCS2 – 500A || GBT- 800A || GBT- 600A || GBT- 400A

Rated power: 240-480kW

Ingress Protection: IP54 || IK10

Length of charging cable: 5m

Dimensions (L x D x H): 900mm x 700mm x 1900mm

Send email to us

Product Detail

Product Tags

This series of dc ev charging stations boasts a rugged design and can be scaled up to 240kW(liquid cooled DC EV charging pile 480KW). The dc fast charging piles feature fast charging speeds and support dual-gun charging, enabling quick charging for high-power, large-battery-capacity vehicles. The electric car charger is equipped with an advanced control system and communication module, supporting functions such as intelligent scheduling, remote monitoring, and fault diagnosis. It supports connectivity with major mainstream charging pile management platforms. Through connection to the cloud platform, operators can monitor the real-time opera- ting status of the electric vehicle charging stations and perform remote maintenance and upgrades.

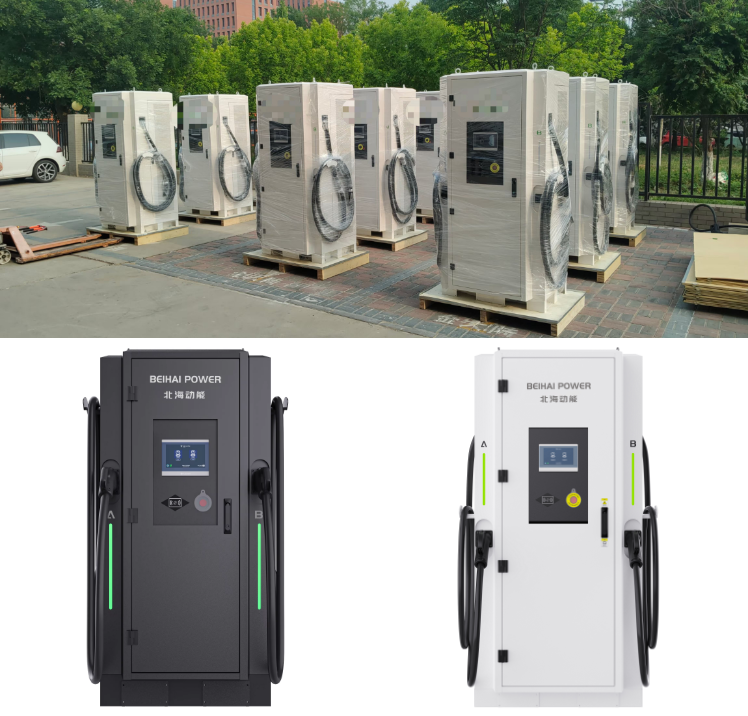

240-480kW Multi Terminal Guns Floor-Mounted Charging Station

Category	specifications	Data parameters
Appearance structure	Dimensions (L x D x H)	900mm x 700mm x 1900mm
	Weight	400kg
	Length of charging cable	5m
	Connectors	CCS1 \|\| CCS2 \|\| CHAdeMO \|\| GBT \|\| NACS
Electrical indicators	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC（The constant power : 300 - 1000VDC）
	Output current (Air Cooled)	CCS1– 200A \|\| CCS2 – 200A \|\| CHAdeMO – 150A \|\| GBT- 250A\|\| NACS – 200A
	Output current (liquid cooled)	CCS2 – 500A \|\| GBT- 800A \|\| GBT- 600A \|\| GBT- 400A
	rated power	240-480kW
	Efficiency	≥94% at nominal output power
	Power factor	0.98
	Communication protocol	OCPP 1.6J
Functional design	Display RFID system	7’’ LCD with touch screen ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G \|\| Wifi
	Power Electronics Cooling	Air Cooled \|\| liquid cooled
Work environment	Operating temperature	-30 °C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54 \|\| IK10
Safety design	Safety standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
