ODM/OEM 40-240kw New Energy EV Charging Stations Commercial DC Electric Car Charger Use IP54 Electric Vehicle Charging Piles with CE

Short Description:

• Single and Dual Connectors

• Support V2G/V2L/V2H

• Parallel Charging

• Configurable output power settings

• RFID Reader

• Optional Credit Card Reader

• OCPP 1.6J Compliant

• FRU Onboard Diagnostics

• CE Certified

Connectors: CCS1 || CCS2 || CHAdeMO || GBT || NACS

Input Voltage: 400VAC / 480VAC (3P+N+PE)

Output Voltage: 200 - 1000VDC（The constant power : 300 - 1000VDC）

Output current (Air Cooled): CCS1– 200A || CCS2 – 200A || CHAdeMO – 150A || GBT- 250A|| NACS – 200A

Output current (liquid cooled): CCS2 – 500A || GBT- 800A || GBT- 600A || GBT- 400A

Rated power: 40-240kW

Communication protocol: OCPP 1.6J

Ingress Protection: IP54 || IK10

Send email to us

Product Detail

Product Tags

This 40KW-240KW charging station boasts fast charging speed and supports dual-gun charging, enabling quick charging for vehicles with high power and large battery capacity. Equipped with an advanced control system and communication module, the product offers features such as intelligent scheduling, remote monitoring, and fault diagnosis. It supports connectivity with major mainstream ev charging station management platfor- ms. By connecting to the cloud platform, operators can monitor the real-time opera- tional status of the charging station and perform remote maintenance and upgrades.

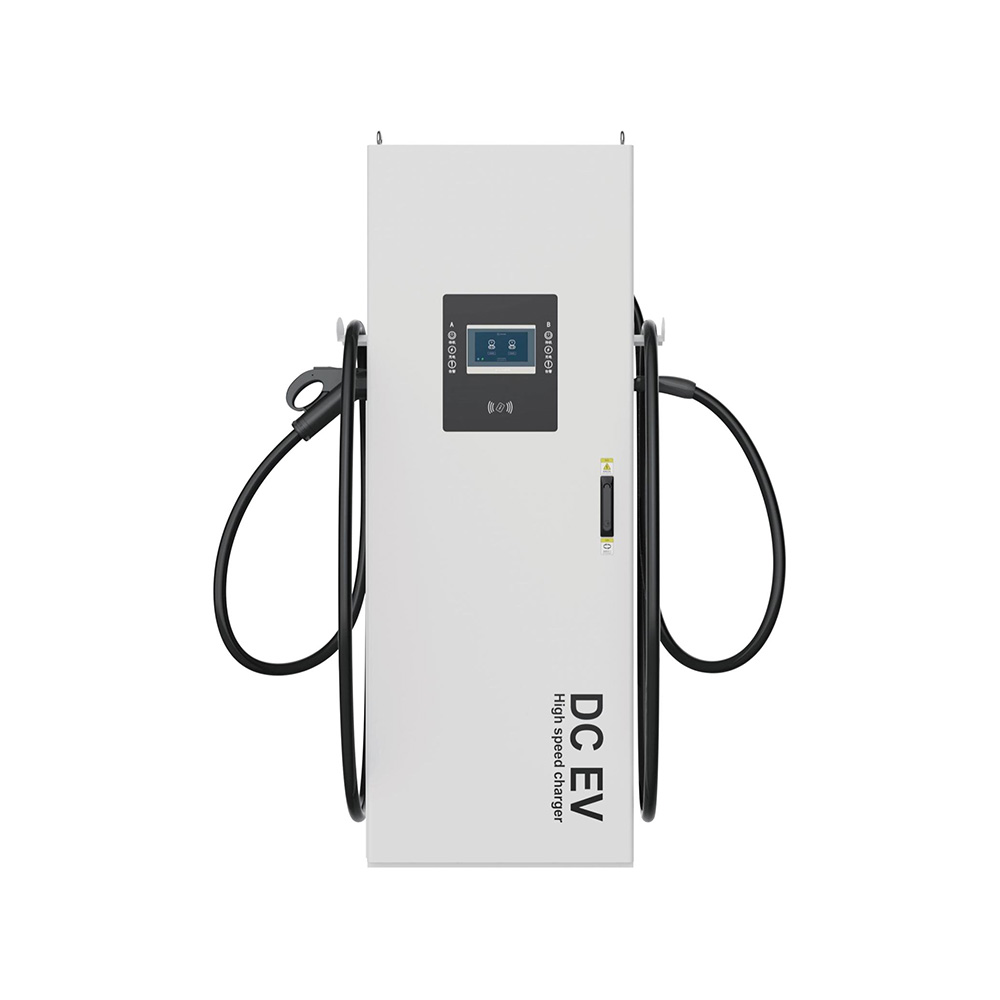

40-240KW Series DC EV charger

Category	specifications	Data parameters
Appearance Structure	Dimensions (L x D x H)	700mm x 700mm x 1900mm
	Weight	400kg
	Length of charging cable	5m
Electrical Indicators	Connectors	CCS1 \|\| CCS2 \|\| CHAdeMO \|\| GBT \|\| NACS
	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC（The constant power : 300 - 1000VDC）
	Output current (Air Cooled)	CCS1– 200A \|\| CCS2 – 200A \|\| CHAdeMO – 150A \|\| GBT- 250A\|\| NACS – 200A
	Output current (liquid cooled)	CCS2 – 500A \|\| GBT- 800A \|\| GBT- 600A \|\| GBT- 400A
	rated power	40-240kW
	Efficiency	≥94% at nominal output power
	Power factor	0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	7’’ LCD with touch screen
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G \|\| Wifi
Work Environment	Power Electronics Cooling	Air Cooled \|\| liquid cooled
	Operating temperature	-30 °C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54 \|\| IK10
Safety Design	Safety standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
	Safety protection	Overvoltage protection, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
