30kw DC EV Charger New Energy Power Electric Vehicle Charging Station with Ocpp1.6 Protocol for Smart and Efficient Charging Management

Short Description:

This High-Speed 20kW DC EV Charging Pile have convenient and powerful EV charging experience. This sleek, small wall mounted(Column)DC charger is engineered for simplicity and elegance, making it an ideal commercial DC EV Charging Pile. It operates on a robust 3-Phase 400V input, providing fast, efficient charging using both CCS1, CCS2 and GB/T standards. Its design avoids complicated details, ensuring straightforward and user-friendly operation suitable for all individuals. With a configurable module offering 20kW or 30kW output, this compact station is a versatile solution for locations requiring quick, reliable, and space-saving DC fast charging capabilities.

Item No.: BHDC-30KW-1

Charging Power: 30KW

Maximum Output Current (A): 80A

Output Voltage Range (V): 200-1000V

Communication Protocols: OCPP 1.6/2.0, Wi-Fi, Ethernet, 4G LTE

Charging Connectors: CCS1, CCS2, GB/T (Single Connector)

Send email to us

Product Detail

Product Tags

20-40kW Series DC EV charger

This High-Speed 30kW DC EV Charging Pile have convenient and powerful EV charging experience. This sleek, small wall mounted(Column)DC charger is engineered for simplicity and elegance, making it an ideal commercial DC EV Charging Pile. It operates on a robust 3-Phase 400V input, providing fast, efficient charging using both CCS1, CCS2 and GB/T standards. Its design avoids complicated details, ensuring straightforward and user-friendly operation suitable for all individuals. With a configurable module offering 20kW or 30kW output, this compact station is a versatile solution for locations requiring quick, reliable, and space-saving DC fast charging capabilities.

EV Charger Station Parameters

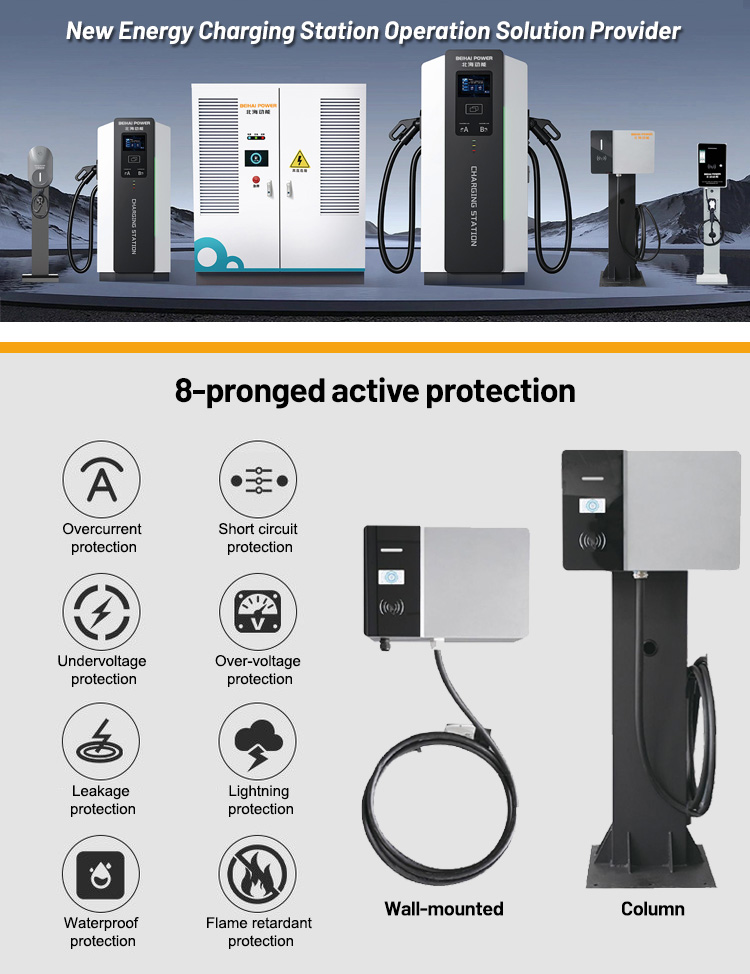

30KW Wall-mounted / column dc charger
Equipment Parameters
Item No.	BHDC-30KW-1
Standard	GB/T / CCS1 / CCS2
InputVoltage Range (V)	220±15%
Frequency Range (HZ)	50/60±10%
Power Factor Electricity	≥0.99
Current Harmonics (THDI)	≤5%
Efficiency	≥96%
Output Voltage Range (V)	200-1000V
Voltage Range of Constant Power(V)	300-1000V
Output Power (KW)	30kw
Maximum Output Current (A)	100A
Charging Interface	1
Length of Charging Cable (m)	5m (can be customized）

Other Information
Steady Current Accuracy	≤±1%
Steady Voltage Accuracy	≤±0.5%
Output Current Tolerance	≤±1%
Output Voltage Tolerance	≤±0.5%
Currrent Imbalance	≤±0.5%
Communication Method	OCPP
Heat Dissipation Method	Forced Air Cooling
Protection Level	IP55
BMS Auxiliary Power Supply	12V
Reliability (MTBF)	30000
Dimension (WDH)mm	500215330 (wall-mounted)
Dimension (WDH)mm	5002151300 (Column)
Input Cable	Down
Working Temperature (℃)	-20～＋50
Storage Temperature (℃)	-20～＋70
Option	Swipe card, scan code, operation platform

Product Features

1. 20kW/30kW Charging Module: Offers flexible, high-speed DC power output, allowing sites to optimize charging speed based on available grid capacity and vehicle requirements, maximizing customer throughput.

2. One-Click Start: Streamlines the user interface, eliminating complexity and drastically improving charging speed initiation for a universally simple and frustration-free experience.

3. Minimalist Installation: Wall-mounted, compact design saves floor space, simplifies civil work, and is ideal for integration into existing parking facilities and aesthetically sensitive environments.

4. Extremely Low Failure Rate: Guarantees maximum charger uptime (availability), reducing maintenance costs and ensuring consistent, reliable service—a critical factor for commercial profitability.

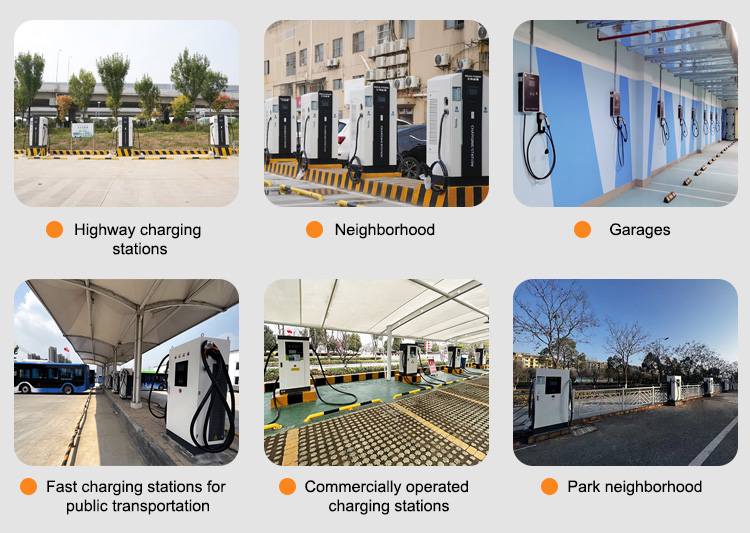

Application

DC charging piles are widely used in the field of electric vehicle charging, and their application scenarios include but are not limited to the following:
Public charging piles: set up in public parking lots, gas stations, commercial centers and other public places in cities to provide charging services for EV owners.
Highway charging stations: set up charging stations on highways to provide fast charging services for long-distance EVs and improve the range of EVs.
Charging stations in logistics parks: charging stations are set up in logistics parks to provide charging services for logistics vehicles and facilitate the operation and management of logistics vehicles.
Electric vehicle leasing places: set up in electric vehicle leasing places to provide charging services for leasing vehicles, which is convenient for users to charge when leasing vehicles.
Internal charging pile of enterprises and institutions: Some large enterprises and institutions or office buildings can set up DC charging piles to provide charging services for the electric vehicles of employees or customers, and enhance the corporate image.
