High-Power 20-40kw CCS2 GB/T Level 2 Wall-Mounted EV Charger CE Certification Electric Vehicle Charging Station with IP54 for Tesla or BYD

Short Description:

This low-power DC EV charging station(BH-02C) have convenient and powerful EV charging experience. This sleek, small wall mounted(Column)DC charger is engineered for simplicity and elegance, making it an ideal commercial DC EV charging station. It operates on a robust 3-Phase 400V input, providing fast, efficient charging using both CCS1, CCS2 and GB/T standards. Its design avoids complicated details, ensuring straightforward and user-friendly operation suitable for all individuals. With a configurable module offering 20kW or 30kW output, this compact station is a versatile solution for locations requiring quick, reliable, and space-saving DC fast charging capabilities.

Item No.: BHDC-BH-02C

Charging Power: 20KW, 30KW, 40KW

Input Voltage: 400VAC (3P+N+PE)

Output current: 1-125A

Output Voltage Range (V): 200-1000V

Charging standard: GB/T,CCS2,CCS1,CHAdeMO,NACS

Communication Protocols: OCPP 1.6/2.0, Wi-Fi, Ethernet, 4G LTE

Ingress Protection: IP54

Power Electronics Cooling: Air Cooled

Display: 7''LCD with touch screen

Send email to us

Product Detail

Product Tags

20-40kW Low-Power DC EV charger

This 20-40kw low-power DC EV charging pile BH-02C have convenient and powerful EV charging experience. This sleek, small wall mounted(Column)DC charger is engineered for simplicity and elegance, making it an ideal commercial DC EV charging station. It operates on a robust 3-Phase 400V input, providing fast, efficient charging using both CCS1, CCS2 and GB/T standards. Its design avoids complicated details, ensuring straightforward and user-friendly operation suitable for all individuals. With a configurable module offering 20kW or 30kW output, this compact station is a versatile solution for locations requiring quick, reliable, and space-saving DC fast charging capabilities.

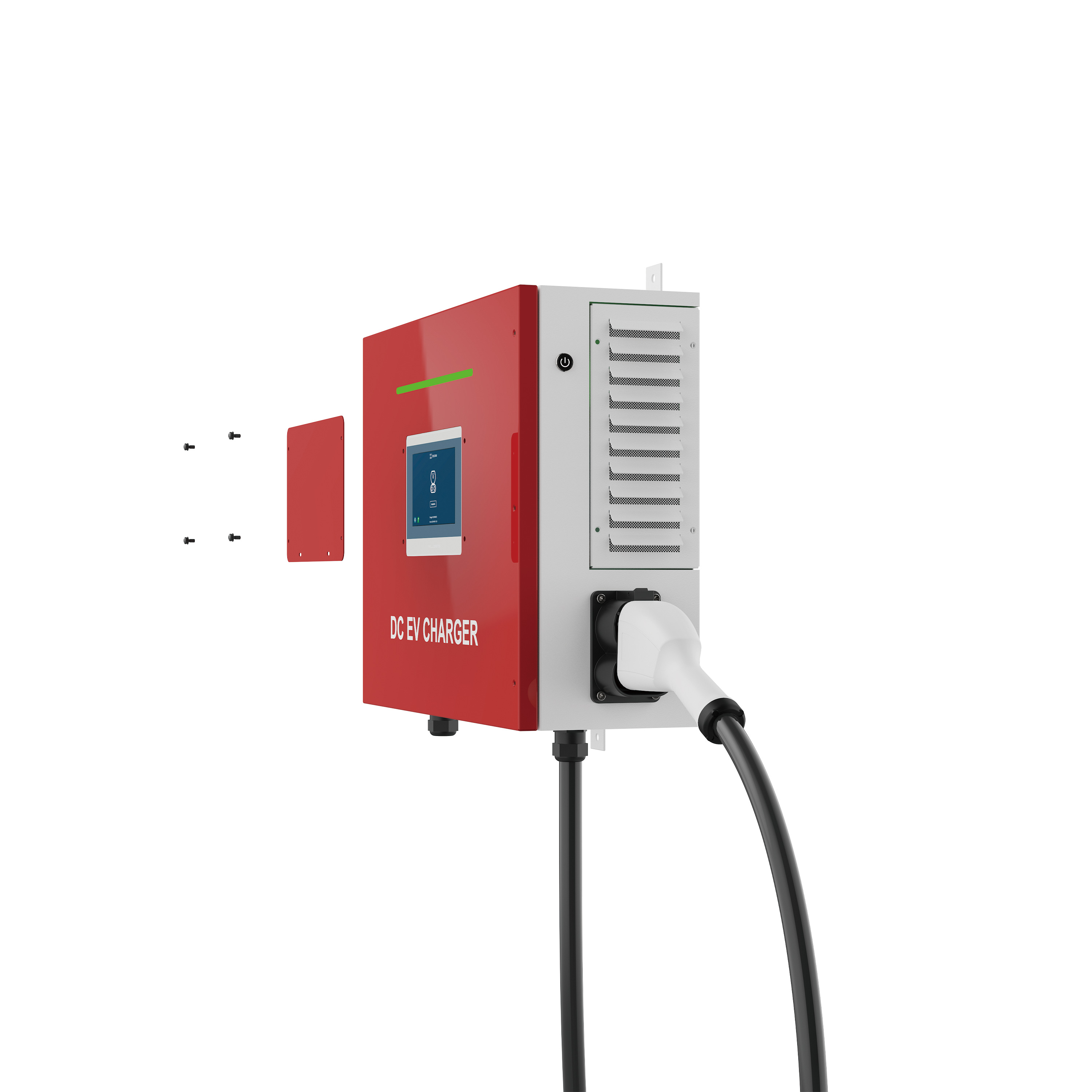

Electric Car Charging Stations

Global Compliance and Safety Assurance: ISO, CE, and TÜV Certified DC EV Charger

Our China Beihai Power High-Speed DC Electric Car Charger is not only defined by its power and elegant design but also by its adherence to the highest international quality and safety standards. This commercial DC EV Charging Pile is fully certified, demonstrating our commitment to reliability and global market access. We hold the ISO 9001 certification, ensuring our design and manufacturing processes meet stringent quality management requirements. Furthermore, the product proudly carries the CE certificate and TÜV certificate, providing comprehensive assurance. This combination of certifications ensures you are investing in a safe, high-quality, and globally compliant charging solution.

Wall Mounted DC EV Charger Paramenters

Category	specifications	Data parameters
Appearance structure	Dimensions (L x D x H)	570mm x 210mm x 470mm
	Weight	40kg
	Length of charging cable	3.5m
	Charging standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
Electrical indicators	Input Voltage	400VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC
	Output current	1-125A
	rated power	20 ，30，40kW
	Efficiency	Peak Power≥94%
	Power factor	>0.98
	Communication protocol	OCPP,State Grid Corporation of China, YKC, Xiao ju and other operating platforms.
Functional design	Display	7’’ LCD with touch screen
	Access Control	NO
	Communication	Ethernet – Standard \|\| 3G/4G Modem
	Power Electronics Cooling	Air Cooled
Work environment	Operating temperature	-30°C to 75°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54
Safety design	Safety protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc

Product Features

1. 20kW/30kW Charging Module: Offers flexible, high-speed DC power output, allowing sites to optimize charging speed based on available grid capacity and vehicle requirements, maximizing customer throughput.

2. One-Click Start: Streamlines the user interface, eliminating complexity and drastically improving charging speed initiation for a universally simple and frustration-free experience.

3. Minimalist Installation: Wall-mounted, compact design saves floor space, simplifies civil work, and is ideal for integration into existing parking facilities and aesthetically sensitive environments.

4. Extremely Low Failure Rate: Guarantees maximum charger uptime (availability), reducing maintenance costs and ensuring consistent, reliable service—a critical factor for commercial profitability.

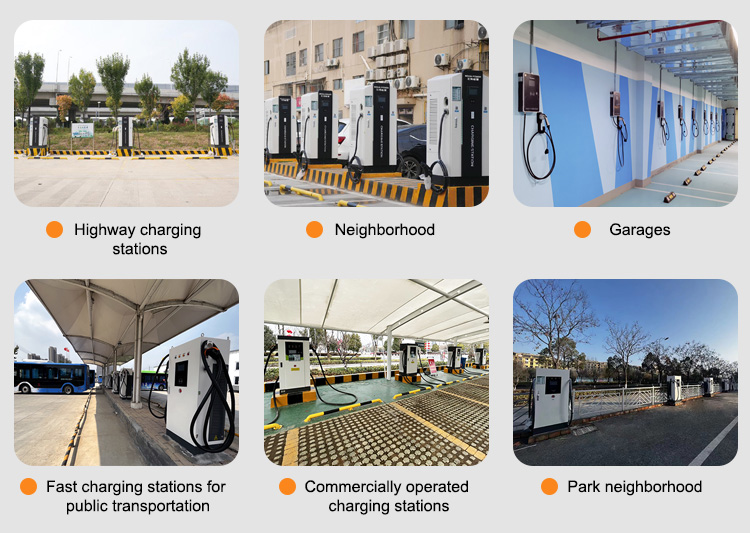

EV Charging Station Application

DC charging piles are widely used in the field of electric vehicle charging, and their application scenarios include but are not limited to the following:

Public charging piles: set up in public parking lots, gas stations, commercial centers and other public places in cities to provide charging services for EV owners.

Highway charging stations: set up charging stations on highways to provide fast charging services for long-distance EVs and improve the range of EVs.

Charging stations in logistics parks: charging stations are set up in logistics parks to provide charging services for logistics vehicles and facilitate the operation and management of logistics vehicles.

Electric vehicle leasing places: set up in electric vehicle leasing places to provide charging services for leasing vehicles, which is convenient for users to charge when leasing vehicles.

Internal charging pile of enterprises and institutions: Some large enterprises and institutions or office buildings can set up DC charging piles to provide charging services for the electric vehicles of employees or

customers, and enhance the corporate image.
