48v 5kwh 7.5kwh and 10kwh powerwall battery for home use
Product introduction
Solar powerwall is an integrated lithium ion battery pack. It is very safe with adopting lithium iron phosphate battery technology. Powerwall battery system is widely used in home energy storage system(HESS) such as solar energy system, wind energy system, ups and also EPS, telecom.
Features
Advantages of BEIHAI Powerwall Lithium Battery
1. 12Years warranty;
2. 6000Cycles Life;
3. Modular stack up to 14 Powerwalls in parallel;
4. RS485&CAN Communicaion;
5. Built-in Smart BMS;
6. Compact size and Safe Material;
Specifications
Lithium Battery Powerwall
| Model | LFP48-100 | LFP48-150 | LFP48-200 |
| Norminal Voltage | 48V | 48V | 48V |
| Nomrinal Capacity | 100AH | 150AH | 200AH |
| Norminal Energy | 5KWH | 7.5KWH | 10KWH |
| Charge Voltage Range | 52.5-54.75V | ||
| Dicharge Voltage Range | 37.5-54.75V | ||
| Charge Current | 50A | 50A | 50A |
| Max Discharge Current | 100A | 100A | 100A |
| Design Life | 20Years | 20years | 20years |
| Weight | 55KGS | 70KGS | 90KGS |
| BMS | built-in BMS | built-in BMS | built-in BMS |
| Communication | CAN/RS-485/RS-232 | CAN/RS-485/RS-232 | CAN/RS-485/RS-232 |

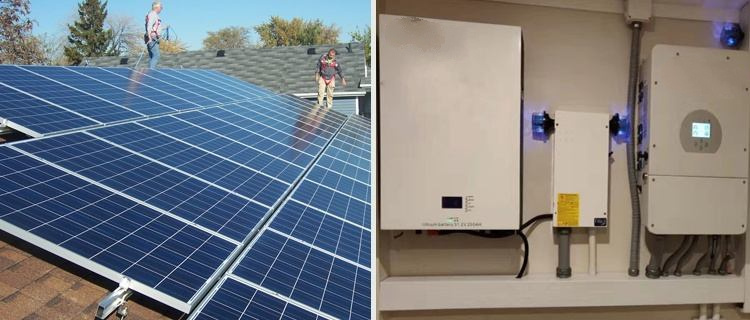

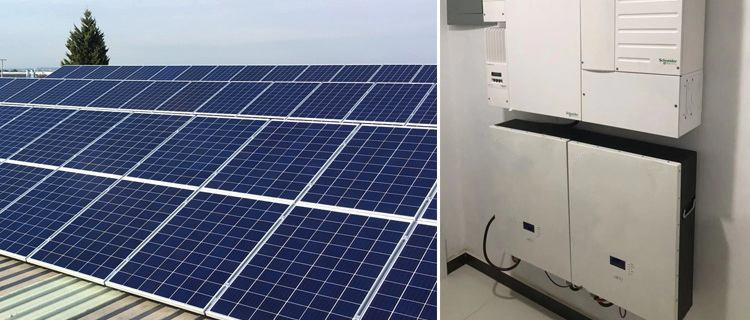

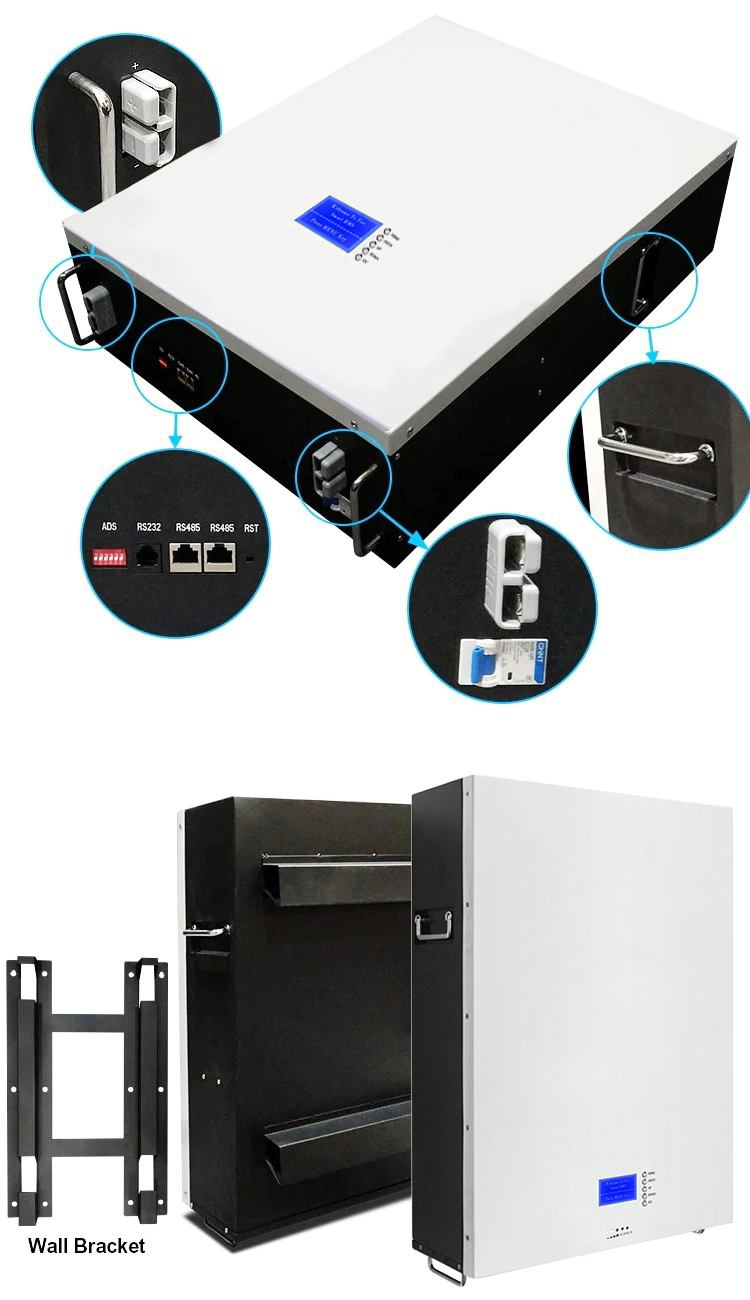

Product detail photos

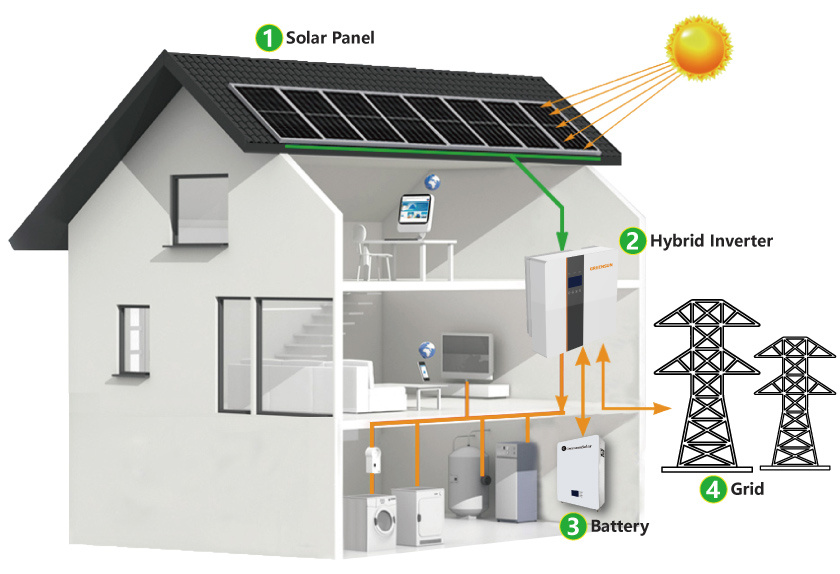

How BEIHAI Powerwall Works?
1. It stores energy from solar panels or grid;
2. It prevent your house from power outage;
3. Powerwall provides energy for you when you need;
4. Powerwall can be charged by solar or grid;
Our Services
We have first-class R & D personnel and high-quality management personnel, can manufacture various solar photovoltaic systems and photovoltaic modules according to the needs of customers, to provide customers with complete solutions in the field of solar energy applications and efficient and fast service, while the company has established a user service system with the general manager as the direct responsible person, from the production line of the product factory to the user's use of the process, the implementation of the whole tracking and technical services.
