Lithium Ion Battery Pack 51.2V Modular LiFePO4 Batteries 10KWH 12KWH 20KWH 30KWH 40KWH 50KWH With Solis Sungrow Huawei Inverter

Short Description:

Product Origin:CHINA;

Color:WHITE;

Shipping Port:Shenzhen, Shanghai;

Type:Stackable Lithium Battery;

Max Power:50KWH;

Maintenance Type:Free;

Cycle Life:20Years;

Certification:IEC, TUV, UL, CE;

Lead Time:7 Days;

Warranty:15 Years;

Send email to us

Product Detail

Product Tags

Product introduction

LiFePO4 Battery High Voltage 5.37KWH-43.0KWH
LiFePO4 battery can be widely used in household energy storage ESS,solarwind energy system,industrial and commercial energy storage and other applications
·Easy installation with modular and stacked design
·Excellent safety of LiFePO4 battery
·High compatibility BMS seamless communication with energy storage inverter
·Suitable for long-term charge and discharge cycle

Features

High Voltage Stacked LiFePO4 Battery
*153.6V-512V wide voltage
*16KWH-50KWH wide Capacity
*Easy installation with modular and stacked design
*Remote firmware upgrade
*IEC CE CEC UN38.3 UL Certificates
*Compatible with all brands Hybrid Inverters

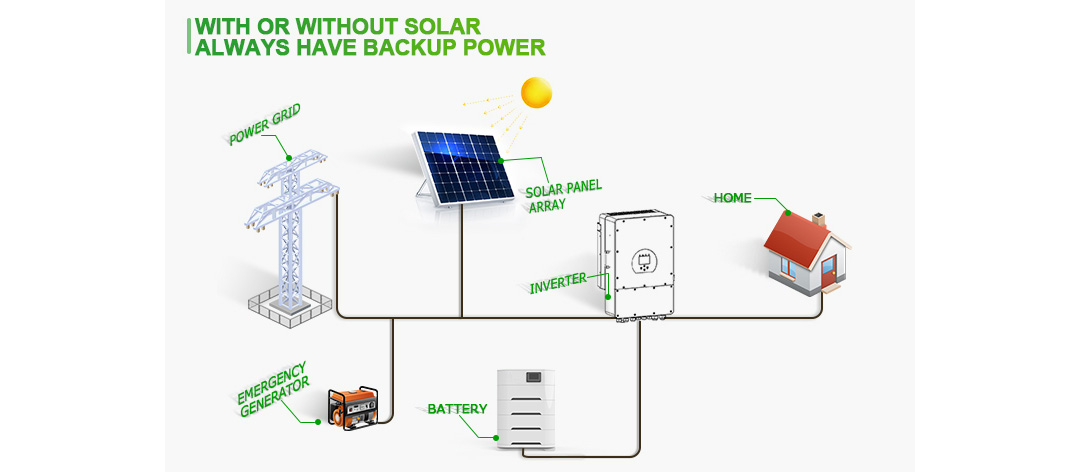

Application

We design and produce high voltage lithium ion battery pack with cabinet.

The lithium battery volatge can be 96V,192V, 240V,360V,384V,,, for car, ship, vessel, telecom comunication, base station .

Also follow the standard of CE, UL, UN 38.3 certificates standard.

Specifications

MODEL	16.1H	21.5H	26.8H
Battery Module	GSB5.4H-A1 (5.376kWh, 51.2V, 80kg)
Numbers of Modules	3	4	5
Energy Capacity	16.1KWH	21.5KWH	26.8KWH
Norminal Voltage	153.6V	204.8V	256V
Dimension (W/D/H)*1	600/400/683mm	600/400/832mm	600/400/981mm
Weight	170KG	215KG	260KG
General
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Charge/Discharg Current	50A/0.5C
IP Protection	IP65
Installation	Wall-mounted or Floor installation* 2
Operation Temperature	-10~50°C* 3
Warranty	10Years
Communication Port	CAN/RS-485/RS-232
BMS Monitoring Parameters	SOC, System voltage, current, cell voltage,cell temperature, PCBA temperature measurement

MODEL	32.2H	37.6H	43.0H
Battery Module	GSB5.4H-A1 (5.376kWh, 51.2V, 80kg)
Numbers of Modules	6	7	8
Energy Capacity	32.2KWH	37.6KWH	43.0KWH
Norminal Voltage	307.2V	358.4V	409.6V
Dimension (W/D/H)*1	600/400/1130mm	600/400/1279mm	600/400/1428mm
Weight	305KG	350KG	395KG
General
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Charge/Discharg Current	50A/0.5C
IP Protection	IP65
Installation	Wall-mounted or Floor installation* 2
Operation Temperature	-10~50°C* 3
Warranty	10Years
Communication Port	CAN/RS-485/RS-232
BMS Monitoring Parameters	SOC, System voltage, current, cell voltage,cell temperature, PCBA temperature measurem
