450 Watt Half Cell Full Black Mono Photovoltaic Solar Panel

Short Description:

Photovoltaic Solar Panel (PV), is a device that converts light energy directly into electricity. It consists of multiple solar cells that utilize the energy of light to generate an electric current, thus enabling the conversion of solar energy into usable electricity.
Photovoltaic solar panels work based on the photovoltaic effect. Solar cells are usually made of a semiconductor material (usually silicon) and when light hits the solar panel, photons excite electrons in the semiconductor. These excited electrons generate an electric current that is transmitted out through a circuit and can be used for power or storage.

Cell size: 182mmx182mm

Panel Efficiency: 430-450w

Panel Dimensions: 1903*1134*32mm

Operate Temperature: -40-+85degree

Application level: Class A

Send email to us

Product Detail

Product Tags

Product Introduction

Photovoltaic Solar Panel (PV), is a device that converts light energy directly into electricity. It consists of multiple solar cells that utilize the energy of light to generate an electric current, thus enabling the conversion of solar energy into usable electricity.
Photovoltaic solar panels work based on the photovoltaic effect. Solar cells are usually made of a semiconductor material (usually silicon) and when light hits the solar panel, photons excite electrons in the semiconductor. These excited electrons generate an electric current, which is transmitted through a circuit and can be used for power supply or storage.

Product Parameters

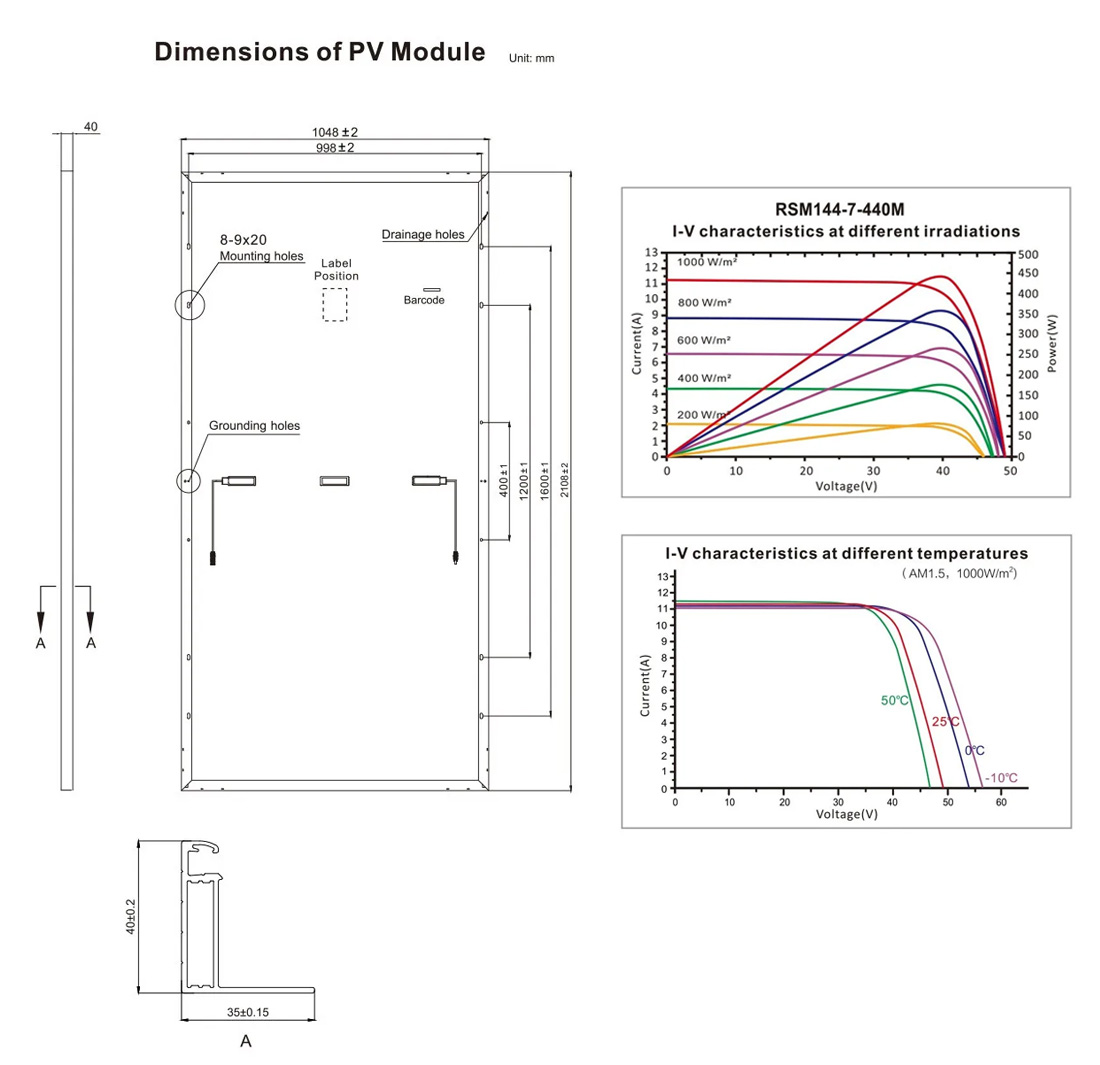

MECHANICAL DATA
Solar cells	Monocrystalline 166 x 83mm
Cell configuration	144 cells (6 x 12 + 6 x 12)
Module dimensions	2108 x 1048 x 40mm
Weight	25kg
Superstrate	High Transmission, Low lron, Tempered ARC Glass
Substrate	White Back-sheet
Frame	Anodized Aluminium Alloy type 6063T5, Silver Color
J-Box	Potted, IP68, 1500VDC, 3 Schottky bypass diodes
Cables	4.0mm2 (12AWG)，Positive (+) 270mm,Negative (-) 270mm
Connector	Risen Twinsel PV-SY02, IP68

Electrical Date
Model Number	RSM144-7-430M	RSM144-7-435M	RSM144-7-440M	RSM144-7-445M	RSM144-7-450M
Rated Power in Watts-Pmax(Wp)	430	435	440	445	450
Open Circuit Voltage-Voc(V)	49.30	49.40	49.50	49.60	49.70
Short Circuit Current-Isc(A)	11.10	11.20	11.30	11.40	11.50
Maximum Power Voltage-Vmpp(V)	40.97	41.05	41.13	41.25	41.30
Maximum Power Current-lmpp(A)	10.50	10.60	10.70	10.80	10.90
Module Efficiency(%)	19.5	19.7	19.9	20.1	20.4
STC: lrradiance 1000 W/m%, Cell Temperature 25℃, Air Mass AM1.5 according to EN 60904-3.
Module Efficiency(%): Round-off to the nearest number

Product Feature

1. Renewable energy: Solar energy is a renewable source of energy and sunlight is an infinitely sustainable resource. By utilizing solar energy, photovoltaic solar panels can generate clean electricity and reduce dependence on traditional energy sources.
2. Eco-friendly and zero-emission: During the operation of PV solar panels, no pollutants or greenhouse gas emissions are produced. Compared to coal- or oil-fired power generation, solar power has a lower environmental impact, helping to reduce air and water pollution.
3. Long life and reliability: Solar panels are typically designed to last up to 20 years or more and have low maintenance costs. They are able to operate in a wide range of climatic conditions and have a high level of reliability and stability.
4. Distributed generation: PV solar panels can be installed on the roofs of buildings, on land or on other open spaces. This means that electricity can be generated directly where it is needed, eliminating the need for long-distance transmission and reducing transmission losses.
5. Wide range of applications: PV solar panels can be used for a variety of applications, including power supply for residential and commercial buildings, electrification solutions for rural areas, and charging of mobile devices.

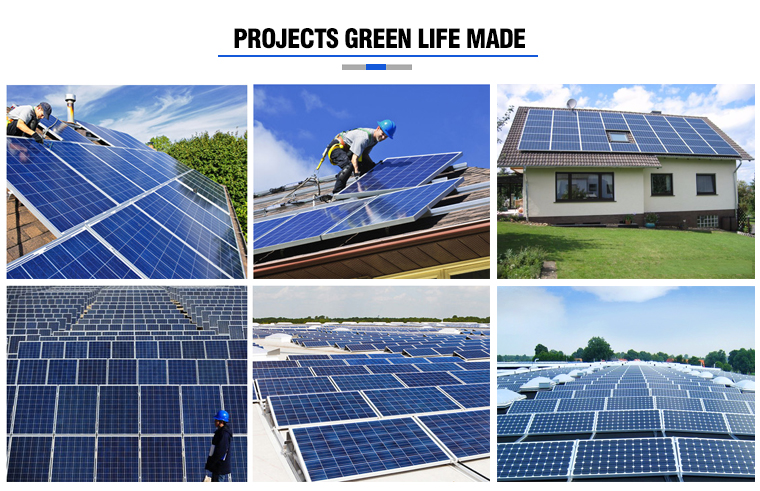

Application

1. Residential and commercial buildings: Photovoltaic solar panels can be mounted on roofs or facades and used to provide electricity supply to buildings. They can supply some or all of the electrical energy needs of homes and commercial buildings and reduce reliance on the conventional electricity grid.
2. Electricity supply in rural and remote areas: In rural and remote areas where conventional electricity supply is not available, photovoltaic solar panels can be used to provide a reliable supply of electricity to communities, schools, medical facilities and homes. Such applications can improve living conditions and promote economic development.
3. Mobile devices and outdoor uses: PV solar panels can be integrated into mobile devices (e.g. cell phones, laptops, wireless speakers, etc.) for charging. In addition, they can be used for outdoor activities (e.g., camping, hiking, boats, etc.) to power batteries, lamps, and other devices.
4. Agriculture and irrigation systems: PV solar panels can be used in agriculture to power irrigation systems and greenhouses. Solar power can reduce agricultural operating costs and provide a sustainable power solution.
5. Urban infrastructure: PV solar panels can be used in urban infrastructure such as street lights, traffic signals and surveillance cameras. These applications can reduce the need for conventional electricity and improve energy efficiency in cities.
6. Large-scale photovoltaic power plants: Photovoltaic solar panels can also be used to build large-scale photovoltaic power plants that convert solar energy into a large-scale electricity supply. Often built in sunny areas, these plants can provide clean energy to city and regional power grids.
