panel power solar 500w 550w monocristalino home use solar panels cells

Short Description:

Solar Photovoltaic Panel, also known as a solar panel or solar panel assembly, is a device that uses the photovoltaic effect to convert sunlight into electricity. It consists of multiple solar cells connected in series or parallel.

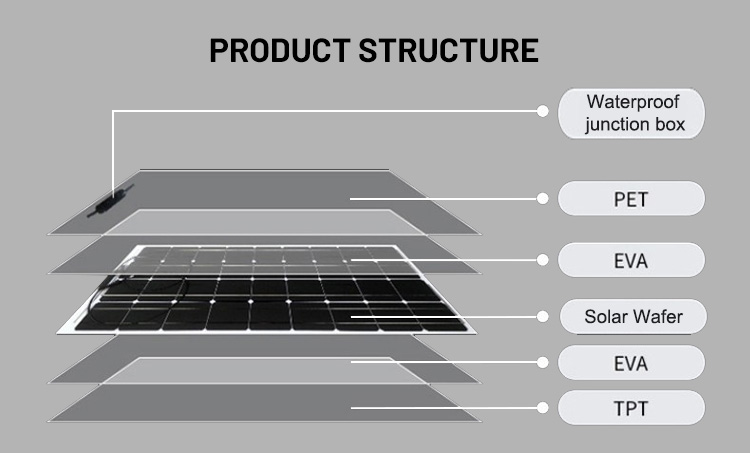

The main component of a solar PV panel is the solar cell. A solar cell is a semiconductor device, usually consisting of multiple layers of silicon wafers. When sunlight hits the solar cell, photons excite the electrons in the semiconductor, creating an electric current. This process is known as the photovoltaic effect.

Panel Efficiency: 540-560w

Cell type: Mono 182*91mm

Operate Temperature: -40-+85degree

Application level: Class A

Send email to us

Product Detail

Product Tags

Product Description

Product Features
1. Renewable Energy: Solar PV panels utilize solar energy to generate electricity, which is a renewable energy source that will not be depleted. Compared to traditional fossil fuel-based power generation methods, solar PV panels have less impact on the environment and can reduce greenhouse gas emissions.
2. Long life and reliability: Solar PV panels usually have a long life and high reliability. They undergo rigorous testing and quality control, can operate in different climatic conditions, and require little maintenance.
3. Quiet and non-polluting: Solar PV panels operate very quietly and without noise pollution. They produce no emissions, wastewater or other pollutants and have a lower impact on the environment and air quality than coal or gas-fired power generation.
4. Flexibility and installability: Solar PV panels can be installed in a variety of places, including rooftops, floors, building facades, and solar trackers. Their installation and arrangement can be adjusted as needed to fit different spaces and needs.
5. Suitable for distributed power generation: Solar PV panels can be installed in a distributed manner, i.e., near places where electricity is needed. This reduces transmission losses and provides a more flexible and reliable way of supplying electricity.

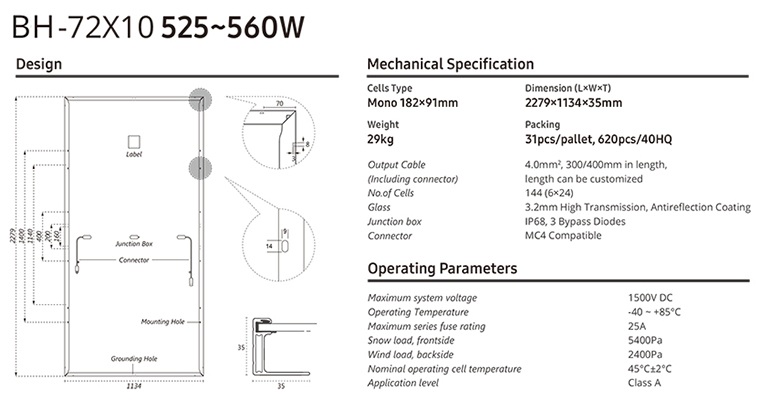

Product Parameters

MECHANICAL DATA
Number of Cells	144 Cells(6×24)
Dimensions of Module LWH(mm)	2276x1133x35mm(89.60×44.61×1.38inches)
Weight (kg)	29.4kg
Glass	High transparency solar glass 3.2mm (0.13 inches)
Backsheet	Black
Frame	Black , anodized aluminium alloy
J-Box	IP68 Rated
Cable	4.0mm^2 (0.006inches^2) ,300mm (11.8inches)
Number of diodes	3
Wind/ Snow Load	2400Pa/5400Pa
Connector	MC Compatible

Electrical Date
Rated Power in Watts-Pmax(Wp)	540	545	550	555	560
Open Circuit Voltage-Voc(V)	49.53	49.67	49.80	49.93	50.06
Short Circuit Current-Isc(A)	13.85	13.93	14.01	14.09	14.17
Maximum Power Voltage-Vmpp(V)	41.01	41.15	41.28	41.41	41.54
Maximum Power Current-lmpp(A)	13.17	13.24	13.32	13.40	13.48
Module Efficiency(%)	21	21.2	21.4	21.6	21.8
Power Output Tolerance(W)	0~+5
STC: lrradiance 1000 W/m%, Cell Temperature 25℃, Air Mass AM1.5 according to EN 60904-3.
Module Efficiency(%): Round-off to the nearest number

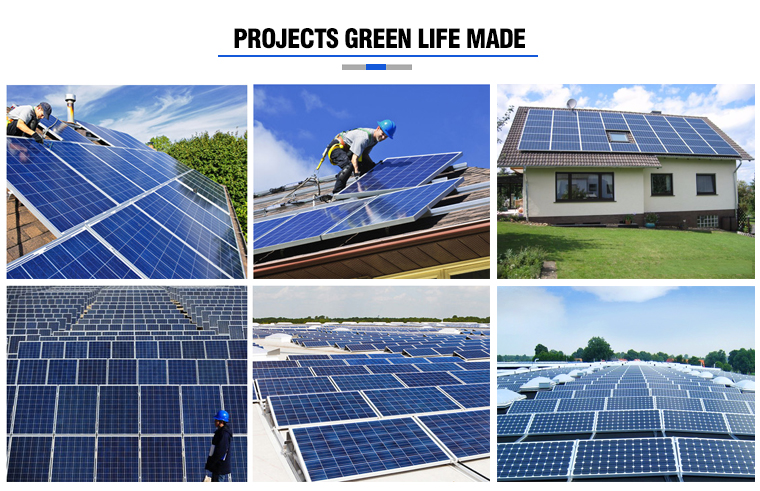

Applications
Solar PV panels are widely used in residential, commercial and industrial applications for generating electricity, supplying electricity and stand-alone power systems. They can be used for power stations, rooftop PV systems, agricultural and rural electricity, solar lamps, solar vehicles, and more. With the development of solar energy technology and falling costs, solar photovoltaic panels are widely used worldwide and are recognized as an important part of the clean energy future.
