Risen Monocrystalline Perc Solar Panel 385W – 405W Solar Panel 390 W 395W 400Watt Full Black Module

Short Description:

Monocrystalline silicon solar energy, also known as monocrystalline silicon solar panels, is a module composed of monocrystalline silicon solar cells arranged in different arrays.

It’s widely used in solar power supply, transportation, communication, petroleum, ocean, meteorology, household lamp power supply, photovoltaic power station and other fields.

Send email to us

Product Detail

Product Tags

Product Details

Solar Cells: Monocrystalline;

Type: Monocrystalline Perc, Full Black;

Panel Dimensions:1754×1096×30mm;

Weight : 21KG;

Product warranty: 15 years;

Superstrate: High Transmission, Low Iron, Tempered ARC Glass;

Substrate: Back-sheet (Front side: Black, Back side: White);

Cables: 4.0mm² (12AWG), Positive(+)350mm, Negative(-)350mm (Connector Included );

J-Box: Potted, IP68, 1500VDC, 3 Schottky bypass diodes;

Connector: Risen Twinsel PV-SY02, IP68;

Frame: Anodized Aluminium Alloy type 6005-2T6, Black;

Key product features and benefits

1.Global, Tier 1 bankable brand, with independently;

2.Certified state-of-the-art automated manufacturing;

3.Industry leading lowest thermal co-efficient of power;

4.Excellent low irradiance performance;

5.Excellent PID resistance;

6.Positive tight power tolerance;

7.Dual stage 100% EL Inspection warranting;

8.Defect-free product;

9.Module Imp binning radically reduces string;

10.Mismatch losses;

11.Excellent wind load 2400Pa & snow load 5400Pa under;

12.Certain installation method;

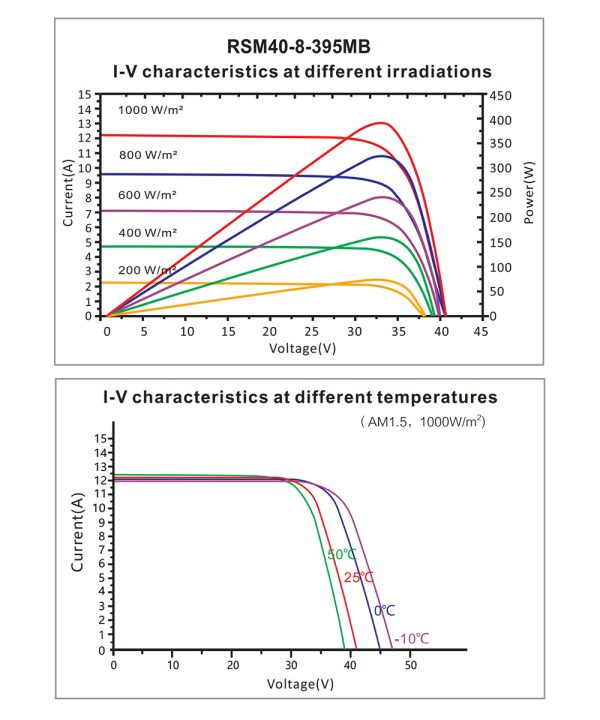

ELECTRICAL DATA (STC)

Model Number	RSM40-8-385MB	RSM40-8-390MB	RSM40-8-395MB	RSM40-8-400MB	RSM40-8-405MB
Rated Power in Watts-Pmax(Wp)	385	390	395	400	405
Open Circuit Voltage-Voc(V)	40.38	40.69	41.00	41.30	41.60
Short Circuit Current-Isc(A)	12.15	12.21	12.27	12.34	12.40
Maximum Power Voltage-Vmpp(V)	33.62	33.88	34.14	34.39	34.64
Maximum Power Current-Impp(A)	11.46	11.52	11.58	11.64	11.70
Module Efficiency (%)	20.0	20.3	20.5	20.8	21.1
STC: Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3.★ Module Efficiency (%): Round-off to the nearest number

ELECTRICAL DATA (NMOT)

Model Number	RSM40-8-385MB	RSM40-8-390MB	RSM40-8-395MB	RSM40-8-400MB	RSM40-8-405MB
Maximum Power-Pmax (Wp)	291.8	295.6	299.4	303.1	306.9
Open Circuit Voltage-Voc (V)	37.55	37.84	38.13	38.41	38.69
Short Circuit Current-Isc (A)	9.96	10.01	10.07	10.12	10.17
Maximum Power Voltage-Vmpp (V)	31.20	31.44	31.68	31.91	32.15
Maximum Power Current-Impp (A)	9.35	9.40	9.45	9.50	9.55
NMOT: Irradiance at 800 W/m², Ambient Temperature 20°C, Wind Speed 1 m/s.

MECHANICAL DATA

Solar cells	Monocrystalline
Cell configuration	120 cells (5×12+5×12)
Module dimensions	1754×1096×30mm
Weight	21kg
Superstrate	High Transmission, Low Iron, Tempered ARC Glass
Substrate	Back-sheet (Front side: Black, Back side: White)
Frame	Anodized Aluminium Alloy type 6005-2T6, Black
J-Box	Potted, IP68, 1500VDC, 3 Schottky bypass diodes
Cables	4.0mm² (12AWG), Positive(+)350mm, Negative(-)350mm (Connector Included )
Connector	Risen Twinsel PV-SY02, IP68

TEMPERATURE & MAXIMUM RATINGS

Nominal Module Operating Temperature (NMOT)	44°C±2°C
Temperature Coefficient of Voc	-0.25%/°C
Temperature Coefficient of Isc	0.04%/°C
Temperature Coefficient of Pmax	-0.34%/°C
Operational Temperature	-40°C~+85°C
Maximum System Voltage	1500VDC
Max Series Fuse Rating	20A
Limiting Reverse Current	20A
