DC Direct Current Solar Water Pump System

Short Description:

DC Solar water pumping system including DC water pump, solar module, MPPT pump controller, solar mounting brackets, dc combiner box and related accessories.


Product Detail

Product Tags

Product introduction

DC Solar water pumping system including DC water pump, solar module, MPPT pump controller, solar mounting brackets, dc combiner box and related accessories.

Daytime, solar panel array provide power for the whole solar water pump system operating, the MPPT pump controller converts the direct current output of the photovoltaic array into alternating current and drives the water pump, adjust the output voltage and frequency in real time according to the change of sunshine intensity to achieve maximum power point tracking.

DC

Specification of dc water pump power

solar

Advantages of DC solar water pumping system

1. Compare with AC water pump system, dc well water pump system has high efficiency; portable dc pump and MPPT controller; a small quantity of solar panels and mounting brackets, easy to install.
2.  Only need small area to install solar panel array.
3.  Safety, low cost, long life time.

DC Direct Current Solar Water Pump Application

(1) Economic crops and farmland irrigation.
(2) Livestock water and grassland irrigation.
(3) Household water.

Technical Data Sheet

Dc pump model pump power(watt) water flow(m3/h) water head(m) outlet(inch) weight(kg)
3JTS(T)1.0/30-D24/80 80w 1.0 30 0.75" 7
3JTS(T)1.5/80-D24/210 210w 1.5 80 0.75" 7.5
3JTS(T)2.3/80-D48/750 750w 2.3 80 0.75" 9
4JTS3.0/60-D36/500 500w 3 60 1.0" 10
4JTS3.8/95-D72/1000 1000w 3.8 95 1.0" 13.5
4JTS4.2/110-D72/1300 1300w 4.2 110 1.0" 14
3JTSC6.5/80-D72/1000 1000w 6.5 80 1.25" 14.5
3JTSC7.0/140-D192/1800 1800w 7.0 140 1.25" 17.5
3JTSC7.0/180-D216/2200 2200w 7.0 180 1.25" 15.5
4JTSC15/70-D72/1300 1300w 15 70 2.0" 14
4JTSC22/90-D216/3000 3000w 22 90 2.0" 14
4JTSC25/125-D380/5500 5500w 25 125 2.0" 16.5
6JTSC35/45-D216/2200 2200w 35 45 3.0" 16
6JTSC33/101-D380/7500 7500w 33 101 3.0" 22.5
6JTSC68/44-D380/5500 5500w 68 44 4.0" 23.5
6JTSC68/58-D380/7500 7500w 68 58 4.0" 25

HOW TO INSTALL A SOLAR PUMP

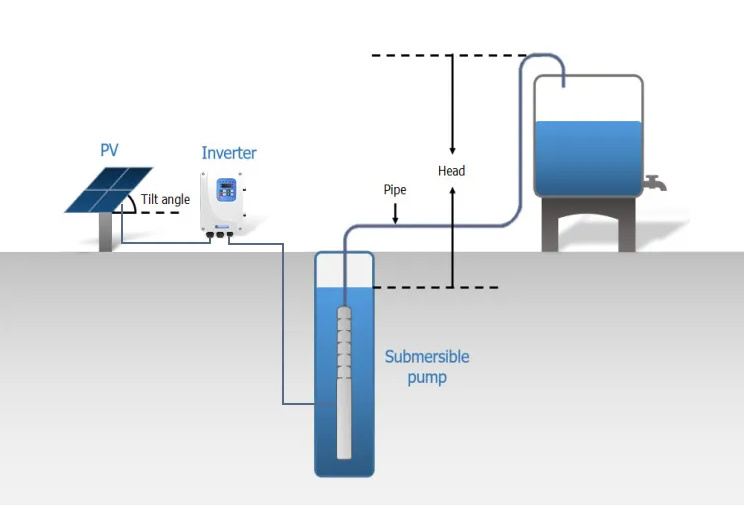

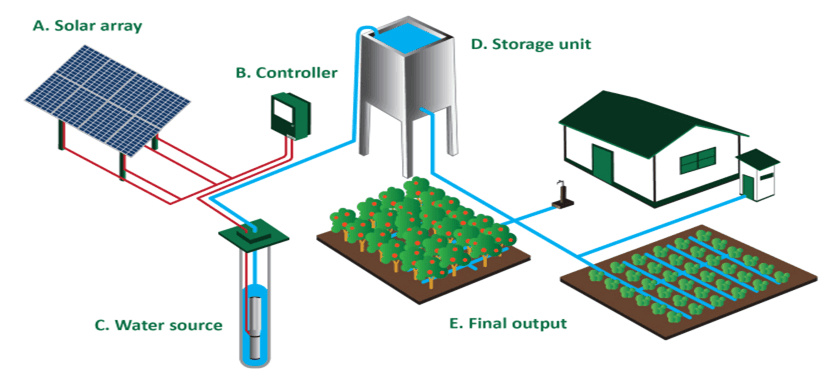

Solar pumping system mainly consists of PV modules, solar pumping controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.

Solar panel collects sunlight→DC electricity energy → Solar Controller(rectification,stabilization, amplification,filtering)→available DC electricity→(charge the batteries)→pumping water.

Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency, The recommended solar panels power = Pump Power * (1.2-1.5).

pump

One stop solution for solar water pumping system, solar power system.
For more information, please feel free to contact our team.
