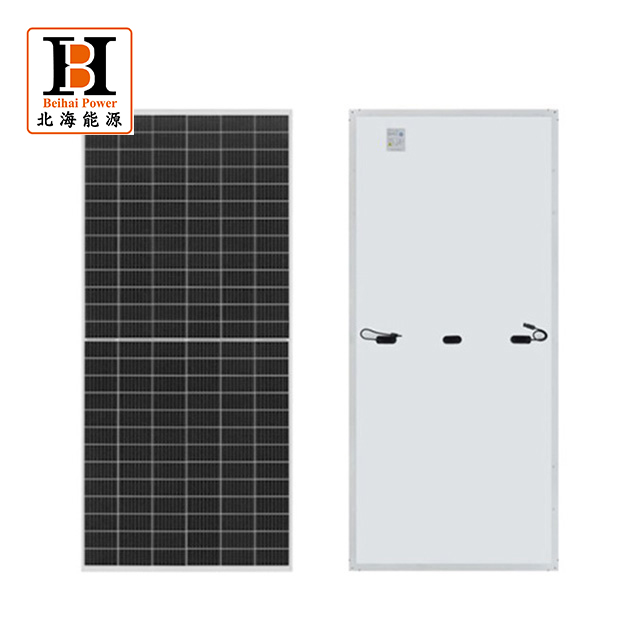

Full Screen Module 650W 660W 670W Solar Panels for Maximum Efficiency

Short Description:

Solar photovoltaic panel is a device that uses solar energy to convert light energy into electricity, also known as a solar panel or photovoltaic panel. It is one of the core components of a solar power system. Solar photovoltaic panels convert sunlight into electricity through the photovoltaic effect, supplying power to a variety of applications such as domestic, industrial, commercial and agricultural applications.

Number of Cells: 132Cells (6x22)

Dimensions of Module L*W*H(mm): 2385x1303x35mm

Maximum System Voltage: 1500V DC

Max Series Fuse Rating: 30A

Send email to us

Product Detail

Product Tags

Product Description
Solar photovoltaic panel is a device that uses solar energy to convert light energy into electricity, also known as a solar panel or photovoltaic panel. It is one of the core components of a solar power system. Solar photovoltaic panels convert sunlight into electricity through the photovoltaic effect, supplying power to a variety of applications such as domestic, industrial, commercial and agricultural applications.

Product Parameter

Mechanical Data
Number of Cells	132Cells(6×22)
Dimensions of Module LWH(mm)	2385x1303x35mm
Weight(kg)	35.7kg
Glass	High transparency solar glass 3.2mm(0.13 inches)
Backsheet	White
Frame	Silver,anodized aluminium alloy
J-Box	IP68 Rated
Cable	4.0mm2(0.006inches2),300mm(11.8inches)
Number of diodes	3
Wind/Snow Load	2400Pa/5400Pa
Connector	MC Compatible

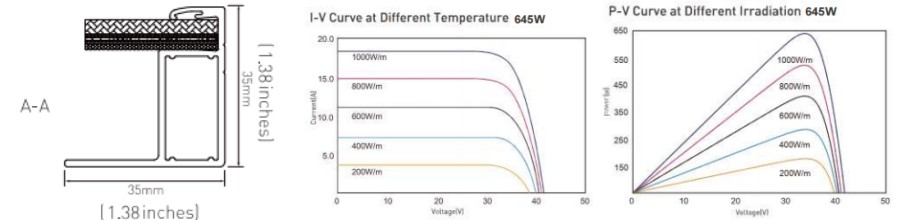

Electrical Specification (STC*)
Maximum Power	Pmax(W)	645	650	655	660	665	670
Maximum Power Voltage	Vmp(V)	37.2	37.4	37.6	37.8	38	38.2
Maximum Power Current	Imp(A)	17.34	17.38	17.42	17.46	17.5	17.54
Open Circuit Voltage	Voc(V)	45	45.2	45.4	45.6	45.8	46
Short Circuit Current	Isc(A)	18.41	18.46	18.5	18.55	18.6	18.65
Module Efficiency	(%)	20.7	20.9	21	21.2	21.4	21.5
Power Output Tolerance	(W)	0~+5
*Irradiance 1000W/m2,Module Temperature 25℃,Air Mass 1.5

Electrical Specification(NOCT*)
Maximum Power	Pmax(W)	488	492	496	500	504	509
Maximum Power Voltage	Vmp (V)	34.7	34.9	35.1	35.3	35.5	35.7
Maximum Power Current	Imp(A)	14.05	14.09	14.13	14.18	14.22	14.27
Open Circuit Voltage	Voc(V)	42.4	42.6	42.8	43	43.2	43.4
Short Circuit Current	Isc (A)	14.81	14.85	14.88	14.92	14.96	15
*Irradiance 800W/m2,Ambient Temperature 20℃,Wind Speed 1m/s

Temperature Ratings
NOCT	43±2℃
Temperature Coefficient of lsc	+0.04%℃
Temperature Coefficient of Voc	-0.25%/℃
Temperature Coefficient of Pmax	-0.34%/℃

Maximum Ratings
Operating Temperature	-40℃~+85℃
Maximum System Voltage	1500V DC
Max Series Fuse Rating	30A

Product Characteristics
1. Photovoltaic conversion efficiency: One of the key indicators of solar photovoltaic panels is the photovoltaic conversion efficiency, i.e. the efficiency of converting sunlight into electricity. Efficient photovoltaic panels make fuller use of solar energy resources.
2. Reliability and durability: Solar PV panels need to be able to operate stably for a long period of time under various environmental conditions, so their reliability and durability are very important. High-quality photovoltaic panels are usually wind-, rain-, and corrosion-resistant, and are able to withstand a variety of harsh climatic conditions.
3. Reliable performance: Solar PV panels should have stable performance and be able to provide consistent power output under different sunlight conditions. This enables the PV panels to meet the demands of various applications and ensures the reliability and stability of the system.
4. Flexibility: Solar PV panels can be customised and installed according to different application scenarios. They can be flexibly mounted on roofs, on the ground, on solar trackers, or integrated into building facades or windows.

Product Applications
1. Residential use: solar photovoltaic panels can be used to provide electricity to homes to power household appliances, lighting systems and air-conditioning equipment, reducing reliance on traditional electricity networks.
2. Commercial and industrial use: Commercial and industrial buildings can use solar PV panels to meet part or all of their electricity needs, reducing energy costs and reducing reliance on traditional energy sources.
3. Agricultural uses: Solar PV panels can provide power to farms for irrigation systems, greenhouses, livestock equipment and agricultural machinery.
4. Remote area and island use: In remote areas or islands without electricity network coverage, solar PV panels can be used as the primary means of electricity supply for local residents and facilities.
5. Environmental monitoring and communication equipment: solar PV panels are widely used in environmental monitoring stations, communication equipment and military facilities that require independent power supply.
