AC Submersible Motor Solar Water Pump System
Product introduction
AC Solar water pumping system including AC water pump, solar module, MPPT pump controller, solar mounting brackets, dc combiner box and related accessories.
Daytime, solar panel array provide power for the whole solar water pump system operating, the MPPT pump controller converts the direct current output of the photovoltaic array into alternating current and drives the water pump, adjust the output voltage and frequency in real time according to the change of sunshine intensity to achieve maximum power point tracking.
Specification of dc water pump power
More Information Details
1. The structure of the motor is simple and reliable, the volume is small and the weight is light.
2. The insulation waterproof treatment is carried out by using the patented technology of stator and rotor double porcelain seal, and the insulation strength of the winding is more than 500 megohms.
3. The design function of the controller is perfect, and it has many kinds of protection, such as MPPT, over-current, under voltage, preventing anhydrous operation and so on.
4. Green environmental protection, solar direct power supply, low voltage DC, energy saving and safety.
5. Solar deep well submersible pump is composed of solar panels to convert light energy into electric energy, and then combined with low voltage special solar water pump, which does not need to lay cable and cable, is convenient and practical, and the operation is simple.
Advantages of AC solar water pumping system
1. High water head and large water flow for agriculture , industrial and domestic water use.
2. The pump inverter also can connect local city grid and get power to operating pump at night.
3. Stainless steel material, permanent magnet motor, 100% copper wire, long life time.
AC solar water pumping system application
(1) Economic crops and farmland irrigation.
(2) Livestock water and grassland irrigation.
(3) Household water.
Technical Data Sheet
| Ac pump model | pump power (hp) |
water flow (m3/h) |
water head (m) |
outlet (inch) |
Voltage (v) |
| R95-A-16 | 1.5HP | 3.5 | 120 | 1.25" | 220/380v |
| R95-A-50 | 5.5HP | 4.0 | 360 | 1.25" | 220/380v |
| R95-VC-12 | 1.5HP | 5.5 | 80 | 1.5" | 220/380v |
| R95-BF-32 | 5HP | 7.0 | 230 | 1.5" | 380v |
| R95-DF-08 | 2HP | 10 | 50 | 2.0" | 220/380V |
| R95-DF-30 | 7.5HP | 10 | 200 | 2.0" | 380V |
| R95-MA-22 | 7.5HP | 16 | 120 | 2.0" | 380v |
| R95-DG-21 | 10HP | 20 | 112 | 2.0" | 380V |
| 4SP8-40 | 10HP | 12 | 250 | 2.0" | 380V |
| R150-BS-03 | 3HP | 18 | 45 | 2.5" | 380V |
| R150-DS-16 | 18.5HP | 25 | 230 | 2.5" | 380V |
| R150-ES-08 | 15HP | 38 | 110 | 3.0" | 380V |
| 6SP46-7 | 15HP | 66 | 78 | 3.0" | 380V |
| 6SP46-18 | 40HP | 66 | 200 | 3.0" | 380V |
| 8SP77-5 | 25HP | 120 | 100 | 4.0" | 380 |
| 8SP77-10 | 50HP | 68 | 198 | 4.0" | 380V |
HOW TO INSTALL A SOLAR PUMP
Solar pumping system mainly consists of PV modules, solar pumping controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.
Solar panel collects sunlight→DC electricity energy → Solar Controller(rectification,stabilization, amplification,filtering)→available DC electricity→(charge the batteries)→pumping water.
Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency, The recommended solar panels power = Pump Power * (1.2-1.5).
Applications of AC Solar Water Pump System

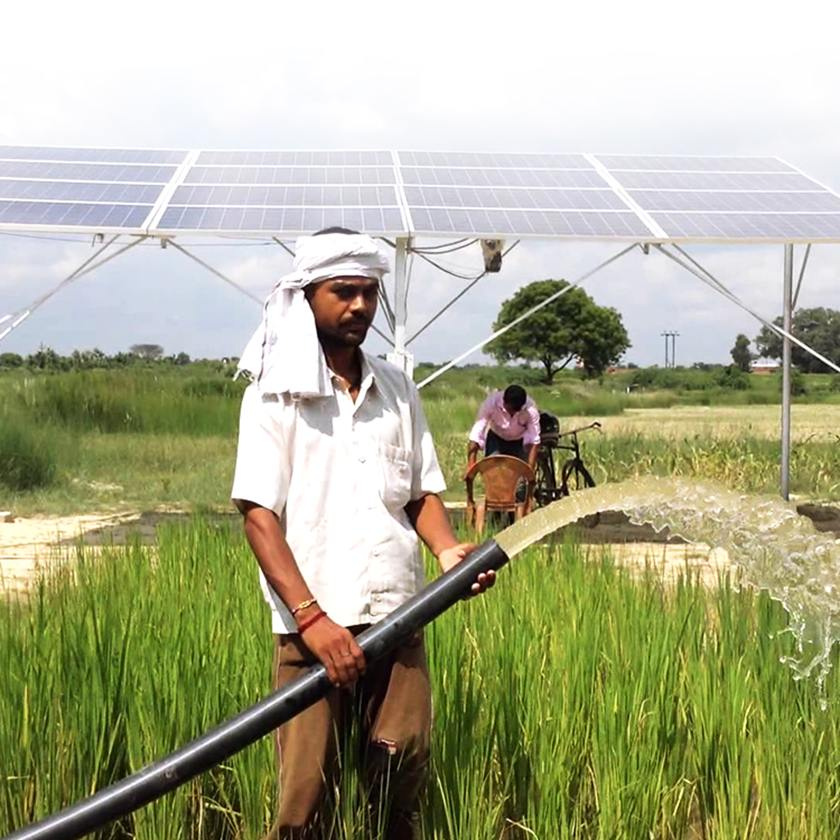

Application of deep well pump to irrigation.
Village and town water supply.
Clean drinking water.
Garden watering.
Pumping and drip irrigation.
One stop solution for solar water pumping system, solar power system.
For more information, please feel free to contact our team.
