Growatt ARK HV Lithium Ion Battery 51.2V 5KW 10KW 12KW 15KW 20KW Lifepo4 Battery

Short Description:

Product Origin:CHINA;

Color:WHITE;

Shipping Port:Shenzhen, Shanghai;

Type:Lithium Battery;

Max Power:25.6KWH;

Maintenance Type:Free;

Cycle Life:20Years;

Certification:IEC, TUV, UL, CE;

Lead Time:7 Days;

Warranty:10 Years;

Send email to us

Product Detail

Product Tags

Product introduction

Growatt ARK HV Lithium Ion Battery 51.2V 5KW 10KW 12KW 15KW 20KW Lifepo4 Battery.

Features

High Voltage Stacked LiFePO4 Battery
*153.6V-512V wide voltage.
*16KWH-50KWH wide Capacity.
*Easy installation with modular and stacked design.
*Remote firmware upgrade.
*IEC CE CEC UN38.3 UL Certificates.
*Compatible with all brands Hybrid Inverters.

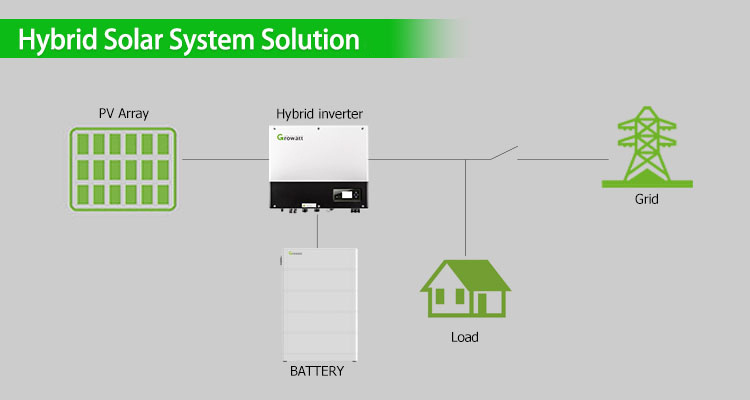

Application

Growatt ARK HV Lithium Ion Battery 51.2V 5KW 10KW 12KW 15KW 20KW Lifepo4 Battery.

LiFePO4 battery can be widely used in household energy storage ESS, solarwind energy system, industrial and commercial energy storage and other applications.

Specifications

MODEL	ARK 7.6H	ARK 10.24H	ARK 12.8H	ARK 15.36H
Battery Module	ARK 2.5H-A1 (2.56kWh, 51.2V, 28kg)
Number of Modules	3	4	5	6
Capacity	7.68KWH	10.24KWH	12.8KWH	15.36KWH
Voltage	153.6V	204.8V	256V	307.2V
Operating Voltage	141-170V	188-227V	236-284V	283-340V
Dimension (W/D/H)*1	650/260/725mm	650/260/905mm	650/260/1085mm	650/260/1265mm
Weight	91KG	118KG	145KG	172KG
General
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Charge/Discharg Current	25A/0.5C
IP Protection	IP65
Installation	Wall-mounted or Floor installation* 2
Operation Temperature	-10~50°C* 3
Warranty	10 Years
BMS Controller	HVC 60050-A1
Communication Port	CAN
BMS Monitoring	SOC, System voltage, current, cell voltage,cell temperature, PCBA temperature measurement

MODEL	ARK 17.9H	ARK 20.4H	ARK 23H	ARK 25.6H
Battery Module	ARK 2.5H-A1 (2.56kWh, 51.2V, 28kg)
Number of Modules	7	8	9	10
Capacity	17.9KWH	20.4KWH	23KWH	25.6KWH
Voltage	358.4V	409.6V	460.8V	512V
Operating Voltage	330-397V	337-454V	424V-511V	512V
Dimension (W/D/H)*1	650/260/1445mm	650/260/1625mm	650/260/1805mm	650/260/1985mm
Weight	199KG	226KG	253KG	280KG
General
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Charge/Discharg Current	25A/0.5C
IP Protection	IP65
Installation	Wall-mounted or Floor installation* 2
Operation Temperature	-10~50°C* 3
Warranty	10 Years
BMS Controller	HVC 60050-A1
Communication Port	CAN
BMS Monitoring	SOC, System voltage, current, cell voltage,cell temperature, PCBA temperature measurement
