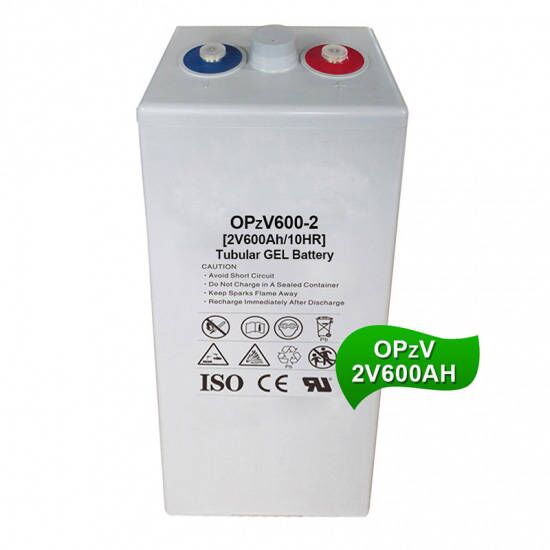

2 Volt Gel Batteries: 200 – 3,000 Ah OPZV Battery

Short Description:

OPzV battery series (Tubular GEL) battery is developed tubular positive plates with fumed gelled electrolyte.


Product Detail

Product Tags

Product introduction

OPzV stands for Ortsfest (stationary) PanZerplatte (tubular plate) Verschlossen (closed). Clearly this is a tubular plate 2V battery cell construction similar to the OPzS battery but having a valve regulated vent plug rather than open vent plug. However, no lead-acid battery is truly closed and for this reason, the V in the acronym is often regarded as standing for “Vented” rather than Verschlossen. By vented this means it has a pressure relief valve which will open at internal pressures of around 70 to 140 millibar.

The main advantages of OPZV Battery

1, 20 years design life;

2, Long cycle life;

3, can adapt to a wider temperature range;

4, Excellent high-rate discharge performance;

5, Constant power discharge capability is stronger;

6, Better charging acceptance;

7, Better safety and reliability;

8, High cost performance, low annual operating cost;

9, Environmental protection and energy saving;

OPZ

Typical Applications

Solar Energy System;
Wind Power System;
UPS Power Supply;
EPS;
Telecommunication equipment;
Base Station;
Electronic instruments;
Fire alarm and security devices;

application

Key Features of OPzV Battery

Low Self-Discharge: about 2% per month Non-Spillable Construction
Safety Valve Installation for Explosion Proof Exceptional Deep Discharge Recovery Performance
99.7% Pure Lead Calcium Grids and A Recognized Component of U.L Wide operation temperature Range: -40℃~55℃

Construction of OPzV Batteries

Positive Plate Tubular plate with calcium-tin alloy
Negative Plate Flat plate grid
Separation Microporous combined with corrugated separator
Case and Cover Material ABS
Electrolyte Fixed as gel
Post Design Leak-proof with brass insert
Intercells Fully insulated, flexible copper cables
Temp. Range 30° to 130° F (68° to 77° F recommended)
Float Voltage 2.25 V/cell
Equalize Voltage 2.35 V/cell

Specifications of OPzV Batteries

Model Nominal Voltage(V) Nominal Capacity(Ah) Dimension Weight Terminal
(C10) (L*W*H*T H)
BH-OPzV2-200 2 200 103*206*356*389mm 18KG M8
BH-OPzV2-250 2 250 124*206*356*389mm 21.8KG M8
BH-OPzV2-300 2 300 145*206*356*389mm 25.2KG M8
BH-OPzV2-350 2 350 124*206*473*505mm 27.1KG M8
BH-OPzV2-420 2 420 145*206*473*505mm 31.8KG M8
BH-OPzV2-500 2 500 166*206*473*505mm 36.6KG M8
BH-OPzV2-600 2 600 145*206*646*678mm 45.1KG M8
BH-OPzV2-800 2 800 191*210*646*678mm 60.3KG M8
BH-OPzV2-1000 2 1000 233*210*646*678mm 72.5KG M8
BH-OPzV2-1200 2 1200 275*210*646*678mm 87.4KG M8
BH-OPzV2-1500 2 1500 275*210*795*827mm 106KG M8
BH-OPzV2-2000 2 2000 399*212*770*802mm 143KG M8
BH-OPzV2-2500 2 2500 487*212*770*802mm 177KG M8
BH-OPzV2-3000 2 3000 576*212*770*802mm 212KG M8

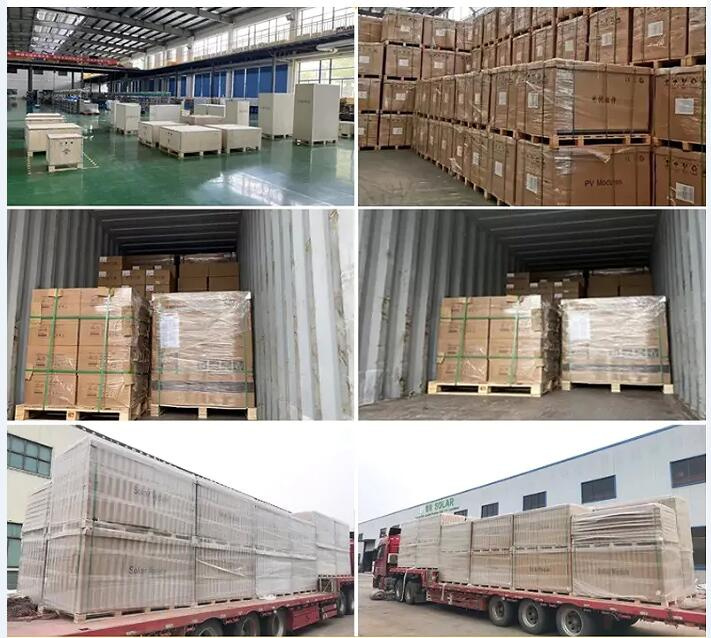

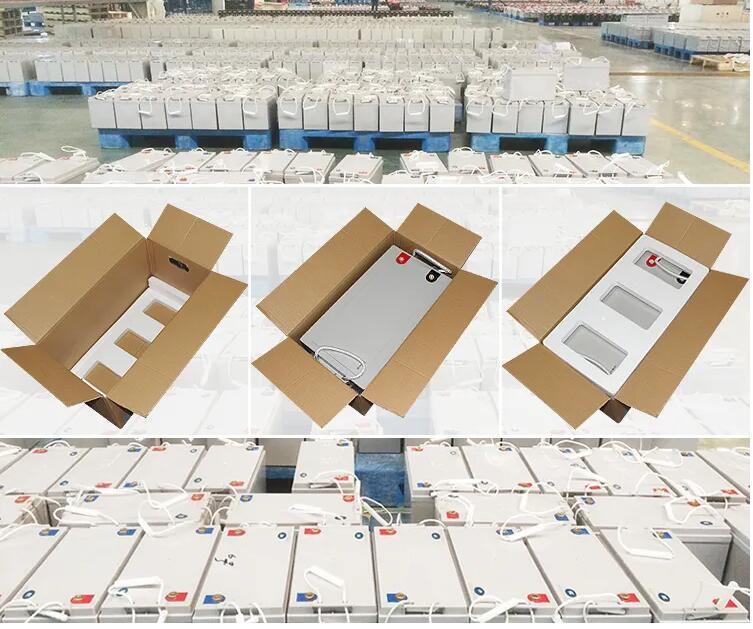

Packing and loading information

packing
packing2
