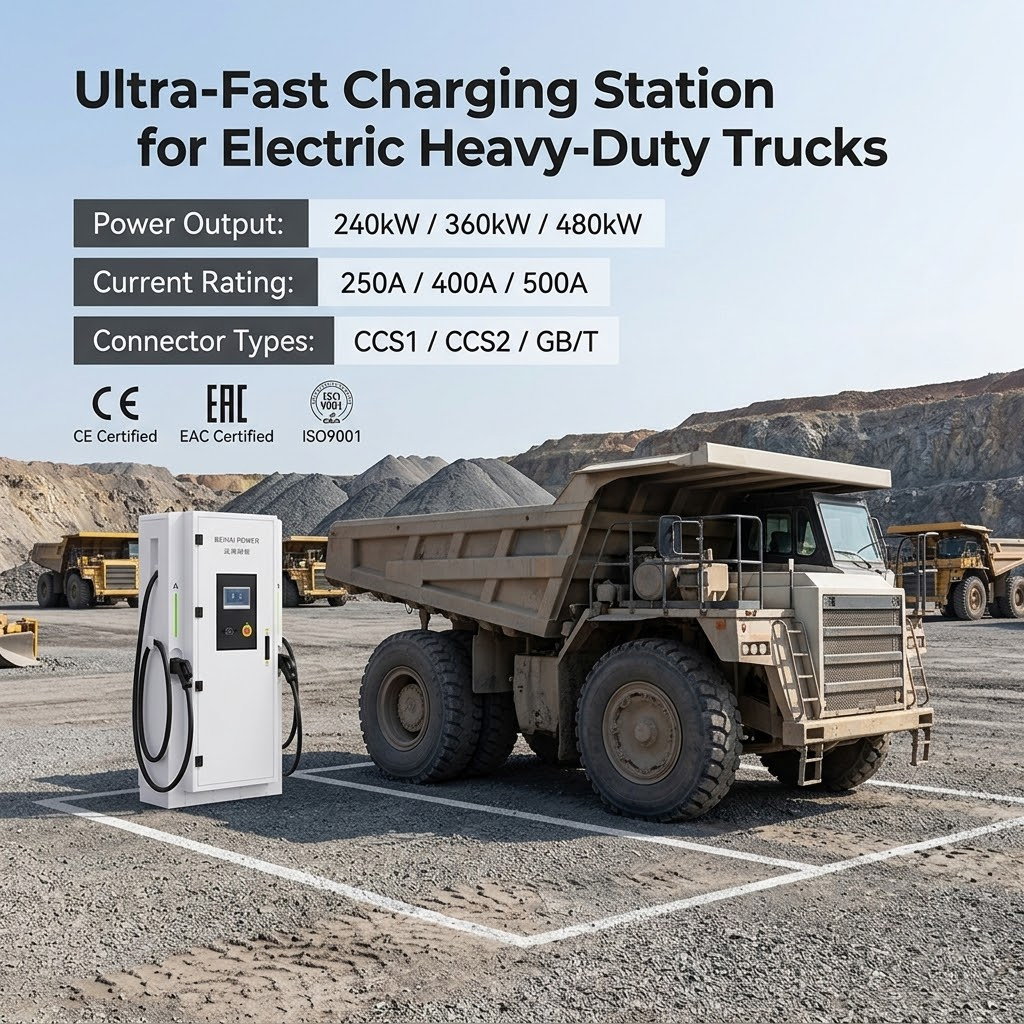

OEM/ODM 360kW EV Charging Station Liquid-Cooled Supercharging Station for Electric Heavy-duty Truck Charging

Short Description:

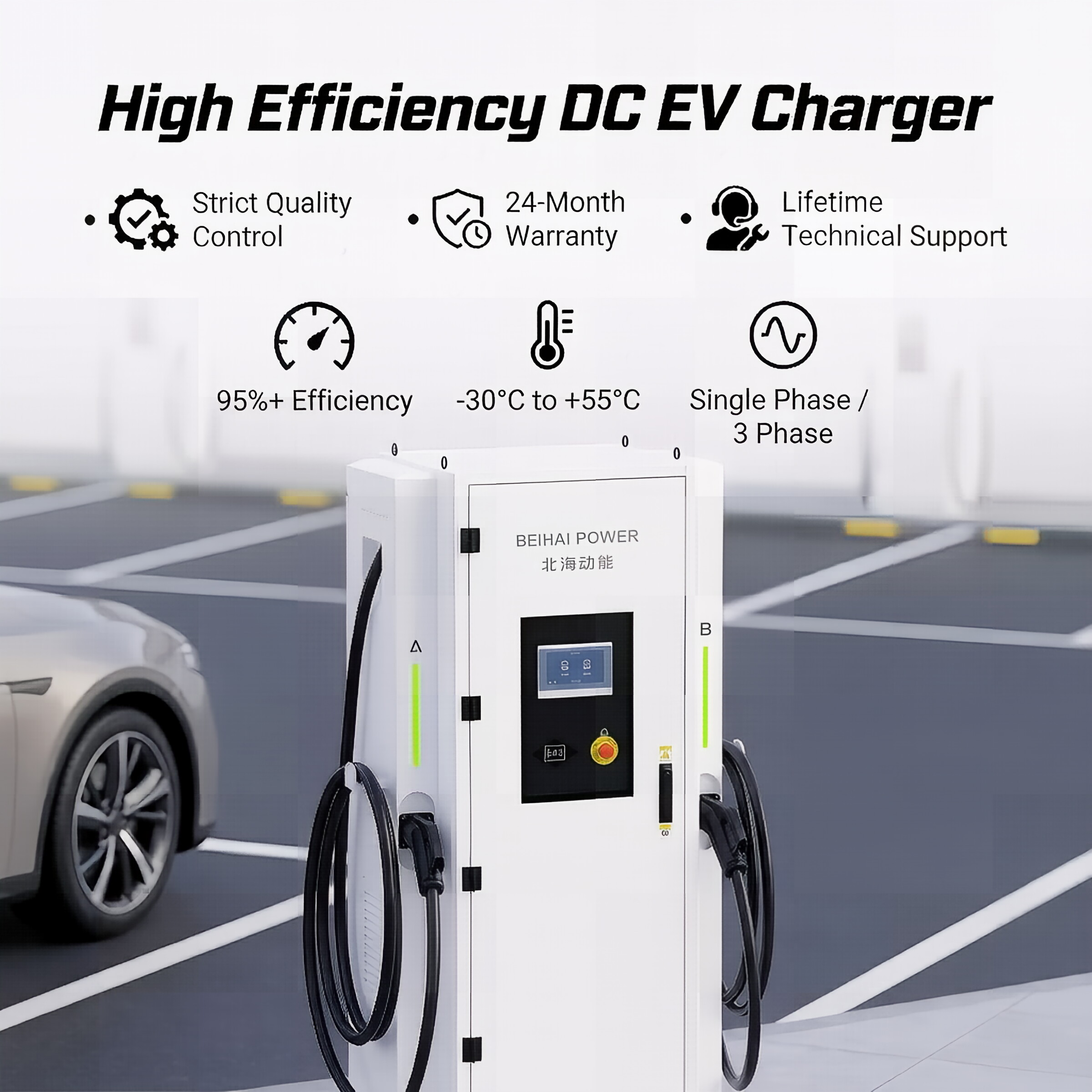

The 360kw dual gun electric heavy-duty truck charging station is an advanced and efficient charging solution designed to meet the increasing demand for faster, simultaneous charging of electric vehicles (EVs) and other DC-powered devices. With two independent charging ports, it allows for the simultaneous charging of multiple devices, minimizing downtime and enhancing operational efficiency.

Rated power: 360KW

Connectors: CCS1 || CCS2 || CHAdeMO || GBT || NACS

Input Voltage: 380VAC / 480VAC (3P+N+PE)

Output Voltage: 200 - 1000VDC（The constant power : 300 - 1000VDC）

Output current (Air Cooled): CCS1– 200A || CCS2 – 200A || CHAdeMO – 150A || GBT- 250A|| NACS – 200A

Output current (liquid cooled): CCS2 – 500A || GBT- 800A || GBT- 600A || GBT- 400A

Ingress Protection: IP54 || IK10

Length of charging cable: 7m

Dimensions (L x D x H): 900mm x 700mm x 1900mm

Send email to us

Product Detail

Product Tags

EVSE Product Introduction

The 360KW electric turck charging station is equipped with fast-charging technology, delivering high-speed power transfer to significantly reduce charging times. It supports a wide voltage range, making it versatile for various applications, while also incorporating essential safety features such as overvoltage, overcurrent, and short-circuit protection, ensuring both the charger and the devices are safeguarded. Its compact and robust design makes it suitable for both indoor and outdoor environments, withstanding harsh conditions while remaining easy to install and operate. The integrated smart charging management system offers real-time monitoring, allowing users to track and manage the charging process efficiently. Ideal for EVs, buses, forklifts, and other DC-powered equipment, the Dual Charging Interface DC Charger offers a reliable, high-performance solution for modern charging needs.

Product Parameters

Category	Specifications	Data Parameters
Appearance Structure	Dimensions (L x D x H)	900mm x 700mm x 1900mm
	Weight	440kg
	Length of charging cable	7m
	Connectors	GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical Indicators	Input Voltage	400VAC / 480VAC (3P + N + PE)
	Input Frequency	50/60Hz
	Output Voltage	200 – 1000VDC
	Output Current	1 – 500A
	Rated Power	≤480kW
	Efficiency	Peak Power ≥96%
	Power Factor	> 0.98
	Communication Protocol	OCPP, State Grid Corporation of China, YKC, Xiaoju and other operating platforms.
Functional Design	Display	7” LCD with touch screen
	Access Control	RFID: ISO/IEC 14443A/B \|\| POS machine (Optional)
	Communication	WIFI \|\| Ethernet \|\| 3G/4G Modem (Optional)
	Power Electronics Cooling	Air Cooled \|\| Liquid Cooled
Work Environment	Operating Temperature	-30°C to 75°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54 \|\| IK10
Safety Design	Safety Protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc.
Safety Design	Emergency Stop	Emergency Stop Button Disables Output Power

EVSE Production Process

Product Details (Internal Structure of the Charging Pile)

EV Charging Station Production Workshop — Internal Product Structure

Product Features

Ultra-Fast DC Charging Capability: Supports a high DC fast charging power of up to 480KW, significantly reducing the charging time for electric vehicles, making it especially suitable for models with large battery capacities.

Dual-Gun Simultaneous High-Efficiency Output: Equipped with dual charging guns, allowing two electric vehicles to be charged simultaneously, greatly enhancing the utilization efficiency and throughput of the charging infrastructure.

Intelligent Cloud Management System: Integrates an advanced control system and communication module, supporting seamless integration with mainstream charging station management platforms to achieve remote monitoring, real-time data analysis, remote maintenance, and firmware upgrades.

Versatile Application Suitability (All-Scenario Use): Designed for both commercial-grade durability and household convenience, it can be deployed in high-load areas like public charging stations and logistics parks, while also meeting the fast energy replenishment needs of high-end residential users.

High-Grade Protection Performance: Features high-standard industrial-grade dustproof and waterproof design (typically IP54 or higher), ensuring the equipment operates stably and reliably in various harsh outdoor weather conditions (such as rain, snow, and dusty environments), securing long-term investment value.

Application

DC charging piles are widely used in the field of electric vehicle charging, and their application scenarios include but are not limited to the following:

Public charging piles: set up in public parking lots, gas stations, commercial centers and other public places in cities to provide charging services for EV owners.

Highway charging stations: set up charging stations on highways to provide fast charging services for long-distance EVs and improve the range of EVs.

Charging stations in logistics parks: charging stations are set up in logistics parks to provide charging services for logistics vehicles and facilitate the operation and management of logistics vehicles.

Electric vehicle leasing places: set up in electric vehicle leasing places to provide charging services for leasing vehicles, which is convenient for users to charge when leasing vehicles.

Internal charging pile of enterprises and institutions: Some large enterprises and institutions or office buildings can set up DC charging piles to provide charging services for the electric vehicles of employees or customers, and enhance the corporate image.

EVSE Workshop

FAQ

1. Why choose our? China BeiHai Power is located in Jiangxi of China.

The company is a comprehensive service provider that integrates R & D, production, sales, construction, after-sales and operation with the main products of new energy electric vehicle charging equipment, pay special attention to product quality, there is a strict quality inspection system to ensure that each product before shipment will be tested. Business scope sales to North, southern Europe, western Europe, northern Europe, Eastern Europe, Africa, South, East Asia, Southeast Asia.

2. What can you buy from us?

AC EV Charging Station, DC EV Charging Pile, Portable Ev Charging Station, Split DC EV Charging Pile, EV Charging Gun.

3. How can we guarantee quality?

We have CE and ISO certification, and our company has a strict quality check system which ensures that our products achieve consistent quality standards, each product will be tested before shipment.

4. Can I customize my own logo?

Yes, OEM and ODM service are available. We also have professional design team for you if you need.

5. What is your terms of packing?

Generally, we pack our goods in brown cartons or wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
