Product Introduction
Maximize your infrastructure’s throughput with our factory-direct
240kW DC Fast Charger, a high-efficiency solution specifically engineered for public utility, municipal, and commercial charging environments. As a premier
EVSE source factory, we deliver a robust, modular ev charging station that boasts over 96% energy conversion efficiency and universal compatibility with
CCS1, CCS2, CHAdeMO, and NACS standards, ensuring rapid, reliable power delivery for diverse EV fleets. Designed for longevity and performance, this IP55-rated unit features seamless
OCPP 1.6J/2.0.1 integration for real-time remote monitoring and smart grid load management, making it an ideal, future-proof investment for high-traffic highway corridors and urban charging hubs. By partnering with us, you benefit from competitive factory-direct pricing, rigorous quality assurance, and customizable white-labeling options, all supported by comprehensive technical guidance to ensure your infrastructure meets the highest international safety standards and operational demands.
EV Charger Parameters
| Category |
Specifications |
Data parameters |
| Appearance structure |
Dimensions (L x D x H) |
745mm x 630mm x 1750mm |
| Weight |
360kg |
| Length of charging cable |
5m |
| Connectors |
GBT, CCS2, CCS1, CHAdeMO, NACS |
| Electrical indicators |
Input Voltage |
400VAC / 480VAC (3P + N + PE) |
| Input frequency |
50/60Hz |
| Output Voltage |
200 – 1000VDC |
| Output current |
1-250A |
| Rated power |
≤240kW |
| Efficiency |
Peak Power ≥96% |
| Power factor |
> 0.98 |
| Communication protocol |
OCPP, State Grid Corporation of China, YKC, Xiaoju and other operating platforms. |
| Functional design |
Display |
7’’ LCD with touch screen |
| Access Control |
RFID: ISO/IEC 14443A/B || POS machine (Optional) |
| Communication |
WIFI || Ethernet || 3G/4G Modem (Optional) |
| Power Electronics Cooling |
Air Cooled |
| Work environment |
Operating temperature |
-30°C to 75°C |
| Working || Storage Humidity |
≤ 95% RH || ≤ 99% RH (Non-condensing) |
| Altitude |
< 2000m |
| Ingress Protection |
IP54 || IK10 |
| Safety design |
Safety protection |
Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc |
| Emergency Stop |
Emergency Stop Button Disables Output Power |
Technical Summary
| Feature |
Specification |
| Max Power Output |
240kW |
| Charging Standards |
CCS, CHAdeMO, NACS (Configurable) |
| Peak Efficiency |
≥96% |
| Connectivity |
4G/5G, Wi-Fi, Ethernet |
| Communication Protocol |
OCPP 1.6J / 2.0.1 |
| Ingress Protection |
IP55 (Weather & Dust Proof) |
Key Features & Technical Specifications
Ultra-Fast Charging
With a maximum output of 240kW, this station significantly reduces downtime for EVs, capable of charging most modern vehicles to 80% capacity in under 20 minutes (depending on vehicle battery architecture).
High-Efficiency
Engineered with advanced power module technology, our charger achieves efficiency rates exceeding 96%, reducing energy waste and lowering operational costs for utility providers.
Modular Architecture
The internal power modules are hot-swappable, allowing for easy maintenance and future-proof scalability. You can start with lower power outputs and upgrade as demand grows.
Universal Compatibility
Compliant with CCS1, CCS2, CHAdeMO, and NACS standards to support a wide range of EV models, making it the ideal choice for public utility, municipal, and highway charging hubs.
Smart Grid Integration
Built-in OCPP 1.6J/2.0.1 compliance ensures seamless communication with backend management software, enabling real-time remote monitoring, load balancing, and smart grid optimization.
Ruggedized Design
Featuring an IP55-rated enclosure, the station is weather-resistant and designed to operate reliably in extreme environmental conditions, ensuring a long operational lifespan.
Why Partner With Our EVSE Factory?

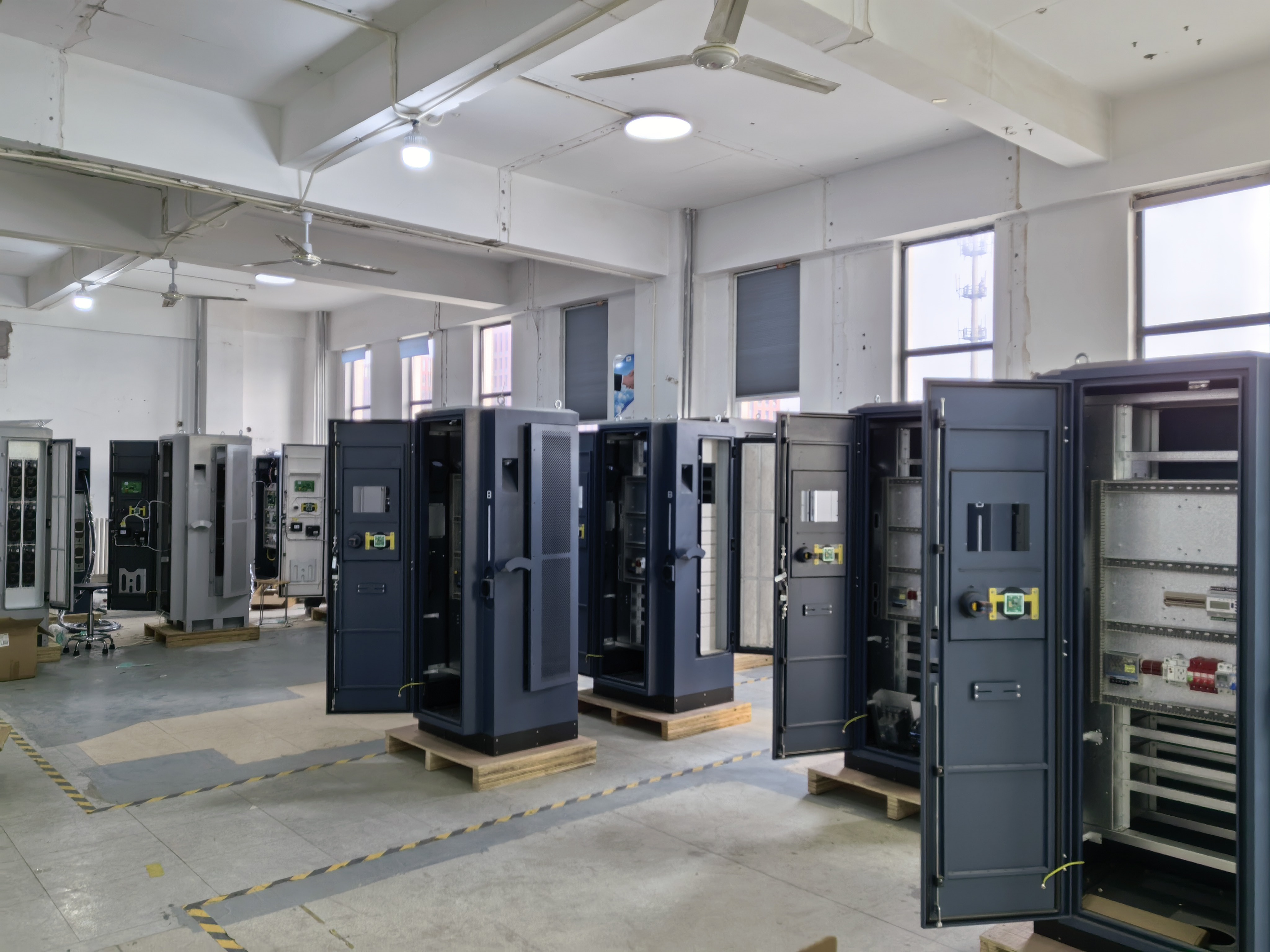

When you source directly from our manufacturing facility, you benefit from
factory-direct pricing without sacrificing quality or support. We specialize in tailoring
EV infrastructure solutions to meet specific regional grid requirements and local safety standards.
- Quality Assurance: Every unit undergoes rigorous stress testing to meet international safety and performance certifications.
- Customization: We offer white-labeling options and custom branding to align with your organization’s identity.
- Technical Support: We provide comprehensive documentation, installation guidance, and dedicated after-sales support to ensure your charging site remains operational 24/7.
Ideal Applications

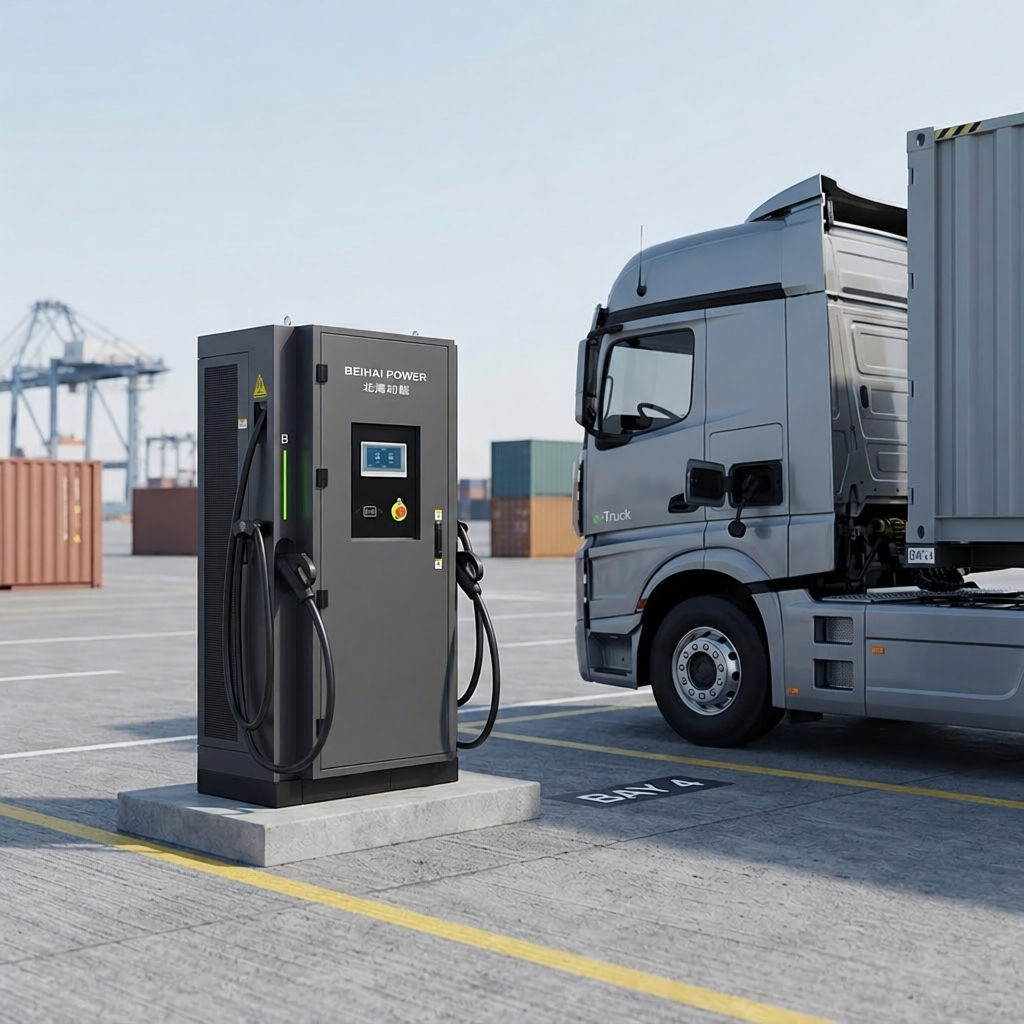

Public Utility & Municipal Hubs
High-traffic city infrastructure.
Commercial Fleets
Rapid turnaround for logistics.
Highway Charging Corridors
Long-distance travel support.
Public Retail Parking
Shopping center value-add.
Are you ready to scale your charging infrastructure?
Contact our engineering team today to discuss project-specific requirements, lead times, and customization options for your next public charging deployment.
To better assist you with your project requirements, could you please specify the target region or country for these electric vehicle charging stations, as this will help us ensure compliance with local electrical codes and safety certifications?
